Description
Features:
- Equipped with new version UNO R3, better than the traditional one.
- Compatible with Arduino and it's software.
- Eco-friendly components and materials for environmental protection.
- Equipped with main chip ATmega328P, CH340G for better performance.
- Comes with pin sockets for better use of DuPont wire.
- Better to solve problems caused by traditional UNO R3.
- Dual power support - 3.3V & 5V.
- Meets different IO expansion requirements.
- 30-day money-back service for quality insurance
- Three rows of holes added for wiring
- Change the in-line package of ATmega328P to flat package.
- CH340G Chip replaces ATmega16U2 chip
- The driver will be automatically installed when Plug the UNO controller board.
Specifications:
- Microcontroller: ATmega328
- Operating voltage: 5V
- Input voltage (recommended): 7-12V ((limited: 6-20V)
- Digital I/O Pins: 14 (6 of them for PWM output)
- Analog input Pins: 6
- DC current per I/O Pin: 40mA
- DC current for 3.3V Pin: 50mA
- Flash memory: 32KB (ATmega328), 0.5KB for bootloader
- SRAM: 2KB (ATmega328)
- EEPROM: 1KB (ATmega328)
- Clock Speed: 16MHz
- Size: 68.6x53.4mm
Packing List:

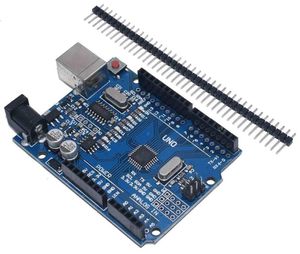

- 1x UNO R3 ATmega328P CH340G Development Board
- 1x 40-Pin header
Note:
CH341SER USB driver is required if you want it to recognize the port on mac.
DarEnterprises Arduino Compatible UNO R3 ATMEGA328P CH340G Board.
