Description
[Items] General-purpose Controller
[Control Application]?Automatic?water?supply?and?drainage
[Controlling materials and operating conditions] For control of ordinary purified water or sewage water
[Supply voltage] 100/200VAC; 50/60 Hz
[Operating voltage range] 85% to 110% of rated voltage
[InterElectrode voltage] 8 VAC
[InterElectrode current] Approx. 1 mA AC max.
[Power consumption] 3.5 VA max.
[InterElectrode operate resistance] 0 to approx. 4k Ohm
[InterElectrode release resistance] Approx. 15 k to infinity Ohm
[Cable length]1 km max.
[Control output]
2 A, 220 VAC (Inductive load: cos Phi0.4)
5 A, 220 VAC (Resistive load)
[Ambient temperature] e Operating: -10 to 55 centigrade
[Ambient humidity] Operating: 45% to 85% RH
[Insulation resistance] 100 M Ohm min. (at 500 VDC)
[Dielectric strength] 2000 VAC, 50/60 Hz for 1 min.
[Life expectancy]
Electrical: 500,000 operations min.
Mechanical: 5,000,000 operations min.
[Weight] Approx. 380 g
(21)
[Control Application]?Automatic?water?supply?and?drainage
[Controlling materials and operating conditions] For control of ordinary purified water or sewage water
[Supply voltage] 100/200VAC; 50/60 Hz
[Operating voltage range] 85% to 110% of rated voltage
[InterElectrode voltage] 8 VAC
[InterElectrode current] Approx. 1 mA AC max.
[Power consumption] 3.5 VA max.
[InterElectrode operate resistance] 0 to approx. 4k Ohm
[InterElectrode release resistance] Approx. 15 k to infinity Ohm
[Cable length]1 km max.
[Control output]
2 A, 220 VAC (Inductive load: cos Phi0.4)
5 A, 220 VAC (Resistive load)
[Ambient temperature] e Operating: -10 to 55 centigrade
[Ambient humidity] Operating: 45% to 85% RH
[Insulation resistance] 100 M Ohm min. (at 500 VDC)
[Dielectric strength] 2000 VAC, 50/60 Hz for 1 min.
[Life expectancy]
Electrical: 500,000 operations min.
Mechanical: 5,000,000 operations min.
[Weight] Approx. 380 g
(21)

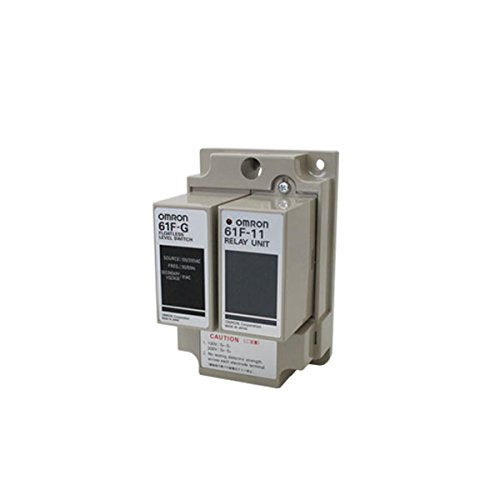

OMRON 61F-G AC100/200V Floatless Level Switch Basic Type (Automatic Water Supply And Drainage) NN
Current Price
$90.8
Average
$89.85
Min Price
$82.32
Max Price
$93.45
Price dynamics
1%
Description
[Items] General-purpose Controller
[Control Application]?Automatic?water?supply?and?drainage
[Controlling materials and operating conditions] For control of ordinary purified water or sewage water
[Supply voltage] 100/200VAC; 50/60 Hz
[Operating voltage range] 85% to 110% of rated voltage
[InterElectrode voltage] 8 VAC
[InterElectrode current] Approx. 1 mA AC max.
[Power consumption] 3.5 VA max.
[InterElectrode operate resistance] 0 to approx. 4k Ohm
[InterElectrode release resistance] Approx. 15 k to infinity Ohm
[Cable length]1 km max.
[Control output]
2 A, 220 VAC (Inductive load: cos Phi0.4)
5 A, 220 VAC (Resistive load)
[Ambient temperature] e Operating: -10 to 55 centigrade
[Ambient humidity] Operating: 45% to 85% RH
[Insulation resistance] 100 M Ohm min. (at 500 VDC)
[Dielectric strength] 2000 VAC, 50/60 Hz for 1 min.
[Life expectancy]
Electrical: 500,000 operations min.
Mechanical: 5,000,000 operations min.
[Weight] Approx. 380 g
(21)
[Control Application]?Automatic?water?supply?and?drainage
[Controlling materials and operating conditions] For control of ordinary purified water or sewage water
[Supply voltage] 100/200VAC; 50/60 Hz
[Operating voltage range] 85% to 110% of rated voltage
[InterElectrode voltage] 8 VAC
[InterElectrode current] Approx. 1 mA AC max.
[Power consumption] 3.5 VA max.
[InterElectrode operate resistance] 0 to approx. 4k Ohm
[InterElectrode release resistance] Approx. 15 k to infinity Ohm
[Cable length]1 km max.
[Control output]
2 A, 220 VAC (Inductive load: cos Phi0.4)
5 A, 220 VAC (Resistive load)
[Ambient temperature] e Operating: -10 to 55 centigrade
[Ambient humidity] Operating: 45% to 85% RH
[Insulation resistance] 100 M Ohm min. (at 500 VDC)
[Dielectric strength] 2000 VAC, 50/60 Hz for 1 min.
[Life expectancy]
Electrical: 500,000 operations min.
Mechanical: 5,000,000 operations min.
[Weight] Approx. 380 g
(21)
