Description

[Cylinder type sensing head size] M8
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.6 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 8x8x1mm
[Response frequency] 1.5 kHz
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output]
Output type: DC 2-wire models with polarity
Switching capacity: 3 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Applicable standard (EC Directive (Low Voltage Directive))] EN60947-1
EN60947-5-2
[Applicable standard (EC Directive (EMC))] EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 60 g

(1)

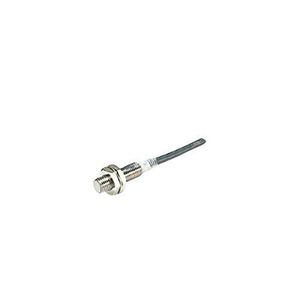

OMRON E2E-X2D1-N 2M Standard Proximity Sensor Shielded (M8 Sensing Distance 2mm)(DC 2 Wire Model)(Pre Wired Models)(PVC(Oil Resistant))(Operation Mode NO) NN

Price is below average

Current Price

$54.89

Average

$61.66

Min Price

$54.89

Max Price

$74.44

Price dynamics

11%

Description

[Cylinder type sensing head size] M8
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.6 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 8x8x1mm
[Response frequency] 1.5 kHz
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output]
Output type: DC 2-wire models with polarity
Switching capacity: 3 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Applicable standard (EC Directive (Low Voltage Directive))] EN60947-1
EN60947-5-2
[Applicable standard (EC Directive (EMC))] EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 60 g

(1)

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
