Description
[Cylinder type sensing head size] M8
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.6 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal(Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 8*8*1mm
[Response frequency] DC:1.5 kHz(average)
[Power supply voltage] 12 to 24 VDC ripple(p-p):10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output]
Output type: DC 2-wire models with polarity
Switching capacity: 3 to 100mA
[Operation mode] NC
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%.(As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529:IP67
Company standard:Oil-proof
[Applicable standard(EC Directive(Low Voltage Directive))] EN60947-1,EN60947-5-2
[Applicable standard(EC Directive(EMC))] EMI:EN60947-5-2
Emission Enclosure:CISPR11 Group 1 class A
EMS:EN60947-5-2
Immunity ESD:IEC61000-4-2
Immunity RF-interference:IEC61000-4-3
Immunity Conducted Disturbance:IEC61000-4-6
Immunity Burst:IEC61000-4-4
CE marking:Equipped
[Applicable standard(CCC mark)] Not equipped
[Weight(Packed state)] approx. 60 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.6 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal(Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 8*8*1mm
[Response frequency] DC:1.5 kHz(average)
[Power supply voltage] 12 to 24 VDC ripple(p-p):10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output]
Output type: DC 2-wire models with polarity
Switching capacity: 3 to 100mA
[Operation mode] NC
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%.(As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529:IP67
Company standard:Oil-proof
[Applicable standard(EC Directive(Low Voltage Directive))] EN60947-1,EN60947-5-2
[Applicable standard(EC Directive(EMC))] EMI:EN60947-5-2
Emission Enclosure:CISPR11 Group 1 class A
EMS:EN60947-5-2
Immunity ESD:IEC61000-4-2
Immunity RF-interference:IEC61000-4-3
Immunity Conducted Disturbance:IEC61000-4-6
Immunity Burst:IEC61000-4-4
CE marking:Equipped
[Applicable standard(CCC mark)] Not equipped
[Weight(Packed state)] approx. 60 g
(1)

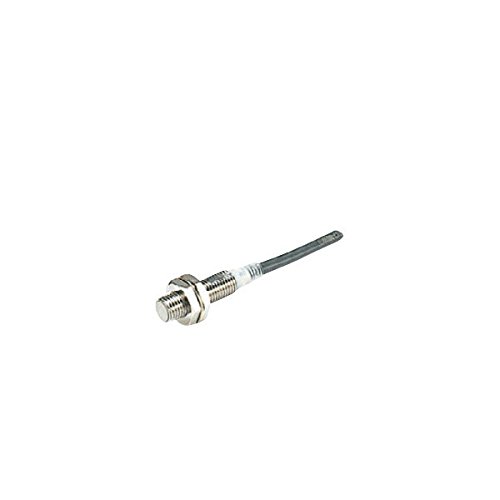

OMRON E2E-X2D2-N 2M Standard Proximity Sensor Shielded (M8 Sensing Distance 2mm)(DC 2 Wire Model)(Pre Wired Models)(PVC(Oil Resistant))(Operation Mode NC) NN
Price is below average
Current Price
$59
Average
$61.05
Min Price
$32.99
Max Price
$74.52
Price dynamics
3%
Description
[Cylinder type sensing head size] M8
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.6 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal(Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 8*8*1mm
[Response frequency] DC:1.5 kHz(average)
[Power supply voltage] 12 to 24 VDC ripple(p-p):10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output]
Output type: DC 2-wire models with polarity
Switching capacity: 3 to 100mA
[Operation mode] NC
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%.(As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529:IP67
Company standard:Oil-proof
[Applicable standard(EC Directive(Low Voltage Directive))] EN60947-1,EN60947-5-2
[Applicable standard(EC Directive(EMC))] EMI:EN60947-5-2
Emission Enclosure:CISPR11 Group 1 class A
EMS:EN60947-5-2
Immunity ESD:IEC61000-4-2
Immunity RF-interference:IEC61000-4-3
Immunity Conducted Disturbance:IEC61000-4-6
Immunity Burst:IEC61000-4-4
CE marking:Equipped
[Applicable standard(CCC mark)] Not equipped
[Weight(Packed state)] approx. 60 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.6 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal(Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 8*8*1mm
[Response frequency] DC:1.5 kHz(average)
[Power supply voltage] 12 to 24 VDC ripple(p-p):10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output]
Output type: DC 2-wire models with polarity
Switching capacity: 3 to 100mA
[Operation mode] NC
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 15% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%.(As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529:IP67
Company standard:Oil-proof
[Applicable standard(EC Directive(Low Voltage Directive))] EN60947-1,EN60947-5-2
[Applicable standard(EC Directive(EMC))] EMI:EN60947-5-2
Emission Enclosure:CISPR11 Group 1 class A
EMS:EN60947-5-2
Immunity ESD:IEC61000-4-2
Immunity RF-interference:IEC61000-4-3
Immunity Conducted Disturbance:IEC61000-4-6
Immunity Burst:IEC61000-4-4
CE marking:Equipped
[Applicable standard(CCC mark)] Not equipped
[Weight(Packed state)] approx. 60 g
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
