Description
[Sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5 mm-10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18 x 18 x 1 mm
[Power supply voltage] 12 to 24 VDC ripple(p-p) 10% Max.
[Operating voltage range] 10 to 40 VDC
[Leakage current] 13 mA max.
[Control output]
Output type: NPN voltage-current output
Switching capacity: 0 to 200 mA
[Indicator] Operation indicator (red)
[Operation mode] NO
[Protective circuit]
Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Standard or Different frequency] Standard
[Degree of protection]
IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models(Cable length: 2 m)
[Weight (Packed state)] approx. 150 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5 mm-10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18 x 18 x 1 mm
[Power supply voltage] 12 to 24 VDC ripple(p-p) 10% Max.
[Operating voltage range] 10 to 40 VDC
[Leakage current] 13 mA max.
[Control output]
Output type: NPN voltage-current output
Switching capacity: 0 to 200 mA
[Indicator] Operation indicator (red)
[Operation mode] NO
[Protective circuit]
Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Standard or Different frequency] Standard
[Degree of protection]
IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models(Cable length: 2 m)
[Weight (Packed state)] approx. 150 g
(1)

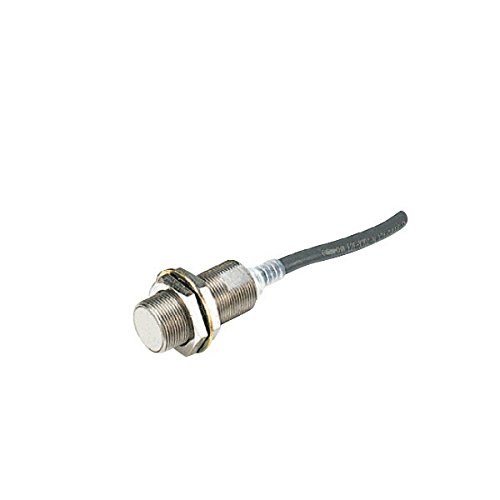

OMRON E2E-X5E1 2M Standard Proximity Sensor Shielded (M18 Sensing Distance 5mm)(DC 3 Wire Model)(Pre Wired Models)(PVC(Oil Resistant))(NPN Voltage Current Output) NN
Price is below average
Current Price
$65
Average
$75.08
Min Price
$60
Max Price
$95.32
Price dynamics
13%
Description
[Sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5 mm-10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18 x 18 x 1 mm
[Power supply voltage] 12 to 24 VDC ripple(p-p) 10% Max.
[Operating voltage range] 10 to 40 VDC
[Leakage current] 13 mA max.
[Control output]
Output type: NPN voltage-current output
Switching capacity: 0 to 200 mA
[Indicator] Operation indicator (red)
[Operation mode] NO
[Protective circuit]
Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Standard or Different frequency] Standard
[Degree of protection]
IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models(Cable length: 2 m)
[Weight (Packed state)] approx. 150 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5 mm-10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18 x 18 x 1 mm
[Power supply voltage] 12 to 24 VDC ripple(p-p) 10% Max.
[Operating voltage range] 10 to 40 VDC
[Leakage current] 13 mA max.
[Control output]
Output type: NPN voltage-current output
Switching capacity: 0 to 200 mA
[Indicator] Operation indicator (red)
[Operation mode] NO
[Protective circuit]
Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Standard or Different frequency] Standard
[Degree of protection]
IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models(Cable length: 2 m)
[Weight (Packed state)] approx. 150 g
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
