Description

[Cylinder type sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 7mm -10% to +10%
[Setting distance] 0 to 5.6 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18*18*1mm
[Response frequency] DC: 0.5 kHz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output (Output type)] DC 2-wire models with polarity
[Control outpu (Switching capacity)] 3 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
[Ambient temperature] Operating: -25 to 70 CEL
Storage: -40 to 85CEL(with no icing or condensation)
[Ambient humidity] 35 to 95 %RH(with no condensation)
[Temperature influence] +/- 10% Max. of sensing distance in temperature range of -25 to +70 CEL(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Applicable standard (EC Directive (Low Voltage Directive) )] EN60947-1,EN60947-5-2
[Applicable standard (EC Directive (EMC))] EMI: EN60947-5-2
Emission Enclosure: CISPR11 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Immunity Burst: IEC61000-4-4
CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 130 g

(1)

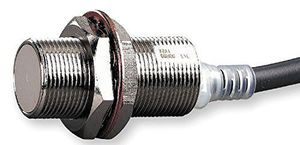

OMRON E2E-X7D1-N 2M Standard Proximity Sensor Shielded (M18 Sensing Distance 7mm)(DC 2 Wire Model)(Pre Wired Models)(PVC(Oil Resistant))(Operation Mode NO) NN

Price is below average

Current Price

$58

Average

$59.25

Min Price

$44.25

Max Price

$65
