Description

[Cylinder type sensing head size] dia. 3
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 0.8mm -15% to +15%
[Setting distance] 0 to 0.56 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 5*5*1mm
[Response frequency] DC: 1.5 kHz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output (Output type)] DC 2-wire models with polarity
[Control outpu (Switching capacity)] 5 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 20% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 2.5% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Insulation resistance] 50 M OHM Min. at 500VDC between charged parts and the case
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Vibration resistance] 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] 1000m/s2 for 10 times each in X, Y, and Z directions
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof (For Sensor Head only)
[Applicable standard (CCC mark)] Not equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 45 g
[Accessories] Instruction manual, Mounting bracket

1

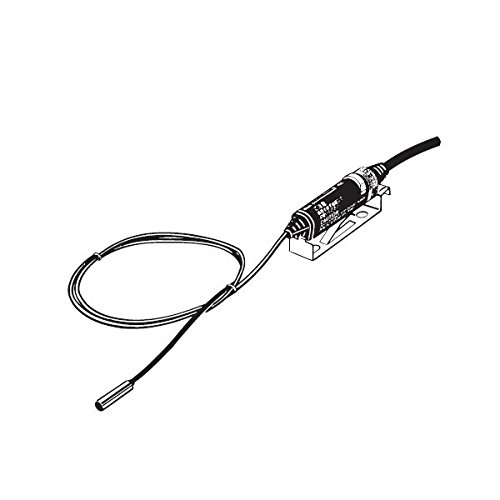

OMRON E2EC-CR8D1 2M Cable Amplifier Proximity Sensor Shielded Type (3 Dia.)(DC 2 Wire Models)(Pre Wired Models) NN

Current Price

$141.75

Average

$141.49

Min Price

$128.56

Max Price

$175.65

Price dynamics

0%

Description

[Cylinder type sensing head size] dia. 3
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 0.8mm -15% to +15%
[Setting distance] 0 to 0.56 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 5*5*1mm
[Response frequency] DC: 1.5 kHz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output (Output type)] DC 2-wire models with polarity
[Control outpu (Switching capacity)] 5 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-circuit protection
[Temperature influence] +/- 20% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 2.5% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Insulation resistance] 50 M OHM Min. at 500VDC between charged parts and the case
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Vibration resistance] 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] 1000m/s2 for 10 times each in X, Y, and Z directions
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof (For Sensor Head only)
[Applicable standard (CCC mark)] Not equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 45 g
[Accessories] Instruction manual, Mounting bracket

1

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
