Description
Cylinder type sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 4mm -10% to +10%
[Setting distance] 0 to 2.8 mm
[Differential distance] 20% Max. of sensing distance
[Sensing object] Non-ferrous metal (Ferrous metal is not detected.)
[Standard sensing object] Aluminum 18*18*1mm
[Response frequency] DC: 70 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 20 mA Max.
[Control output (Output type)] NPN open collector output
[Control output (Switching capacity)] 0 to 100mA (at 30VDC)
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 140 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 4mm -10% to +10%
[Setting distance] 0 to 2.8 mm
[Differential distance] 20% Max. of sensing distance
[Sensing object] Non-ferrous metal (Ferrous metal is not detected.)
[Standard sensing object] Aluminum 18*18*1mm
[Response frequency] DC: 70 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 20 mA Max.
[Control output (Output type)] NPN open collector output
[Control output (Switching capacity)] 0 to 100mA (at 30VDC)
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 140 g
(1)

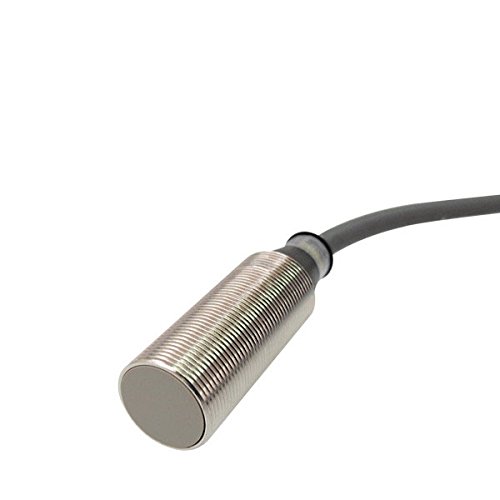

OMRON E2EY-X4C1 2M Aluminum Detecting Proximity Sensor Shielded (M18 Sensing Distance 4mm)(DC 3 Wire Model)(Pre Wired Models)(PVC(Oil Resistant)) NN
Current Price
$188.88
Average
$179.33
Min Price
$160.88
Max Price
$194.39
Price dynamics
5%
Description
Cylinder type sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 4mm -10% to +10%
[Setting distance] 0 to 2.8 mm
[Differential distance] 20% Max. of sensing distance
[Sensing object] Non-ferrous metal (Ferrous metal is not detected.)
[Standard sensing object] Aluminum 18*18*1mm
[Response frequency] DC: 70 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 20 mA Max.
[Control output (Output type)] NPN open collector output
[Control output (Switching capacity)] 0 to 100mA (at 30VDC)
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 140 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 4mm -10% to +10%
[Setting distance] 0 to 2.8 mm
[Differential distance] 20% Max. of sensing distance
[Sensing object] Non-ferrous metal (Ferrous metal is not detected.)
[Standard sensing object] Aluminum 18*18*1mm
[Response frequency] DC: 70 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 20 mA Max.
[Control output (Output type)] NPN open collector output
[Control output (Switching capacity)] 0 to 100mA (at 30VDC)
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
Company standard: Oil-proof
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 140 g
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
