Description
[Cylinder type sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5mm -10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18x18x1mm
[Response frequency] DC: 600 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 17 mA Max.
[Control output (Output type)] NPN voltage-current output
[Control outpu (Switching capacity)] 0 to 200mA
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] Operating: 35 to 95 %RH(with no condensation)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP68
Company standard: Oil-proof
[Applicable standard (EC Directive (EMC))] CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 5 m)
[Weight (Packed state)] approx. 295 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5mm -10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18x18x1mm
[Response frequency] DC: 600 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 17 mA Max.
[Control output (Output type)] NPN voltage-current output
[Control outpu (Switching capacity)] 0 to 200mA
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] Operating: 35 to 95 %RH(with no condensation)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP68
Company standard: Oil-proof
[Applicable standard (EC Directive (EMC))] CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 5 m)
[Weight (Packed state)] approx. 295 g
(1)

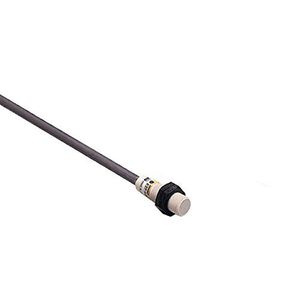

OMRON E2F-X5E1 5M Resin Case Proximity Sensor Shielded (M18 Sensing Distance 5mm)(DC 3 Wire Model)(Pre Wired Models)(Operation Mode NO) NN
Price is below average
Current Price
$93.84
Average
$95.27
Min Price
$85.84
Max Price
$156.99
Price dynamics
2%
Description
[Cylinder type sensing head size] M18
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5mm -10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18x18x1mm
[Response frequency] DC: 600 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 17 mA Max.
[Control output (Output type)] NPN voltage-current output
[Control outpu (Switching capacity)] 0 to 200mA
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] Operating: 35 to 95 %RH(with no condensation)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP68
Company standard: Oil-proof
[Applicable standard (EC Directive (EMC))] CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 5 m)
[Weight (Packed state)] approx. 295 g
(1)
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 5mm -10% to +10%
[Setting distance] 0 to 4 mm
[Differential distance] 10% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 18x18x1mm
[Response frequency] DC: 600 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Current consumption] 17 mA Max.
[Control output (Output type)] NPN voltage-current output
[Control outpu (Switching capacity)] 0 to 200mA
[Indicator] Detection indicator(red)
[Operation mode] NO
[Protective circuit] Surge suppressor
Output short-cut protection
Power supply reverse polarity protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] Operating: 35 to 95 %RH(with no condensation)
[Dielectric strength] 1000 VAC 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP68
Company standard: Oil-proof
[Applicable standard (EC Directive (EMC))] CE marking: Equipped
[Connection method] Pre-wired models (Cable length: 5 m)
[Weight (Packed state)] approx. 295 g
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
