Description

[Cylinder type sensing head size] M12
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.4 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 12x12x1mm
[Response frequency] 100 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output (Output type)] DC 2-wire models with polarity
[Control output (Switching capacity)] 3 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
[Output short-cut protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] 35 to 95 %RH(with no condensation)
[Temperature influence] +/- 20% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529: IP67
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 190 g

(1)

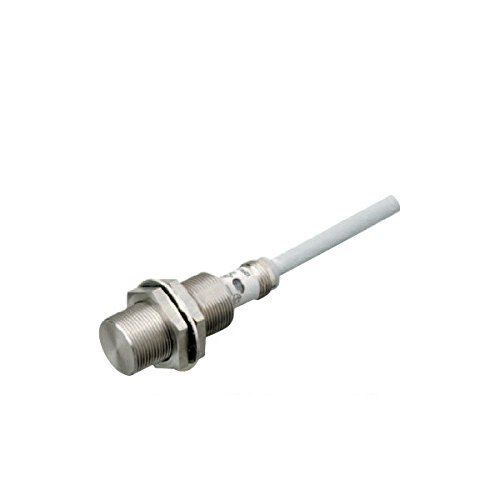

OMRON E2FM-X2D1 2M Proximity Sensor With All Stainless Housing Shielded (M12 Sensing Distance 2mm)(DC 2 Wire Model)(Pre Wired Models) NN

Current Price

$145

Average

$132.5

Min Price

$120

Max Price

$145

Price dynamics

9%

Description

[Cylinder type sensing head size] M12
[Type] Shielded
[Sensing method] Inductive type
[Sensing distance] 2mm -10% to +10%
[Setting distance] 0 to 1.4 mm
[Differential distance] 15% Max. of sensing distance
[Sensing object] Ferrous metal (Sensitivity lowers with non-ferrous metals.)
[Standard sensing object] Iron 12x12x1mm
[Response frequency] 100 Hz (average)
[Power supply voltage] 12 to 24 VDC ripple(p-p) :10% Max.
[Operating voltage range] 10 to 30 VDC
[Leakage current] 0.8 mA Max.
[Control output (Output type)] DC 2-wire models with polarity
[Control output (Switching capacity)] 3 to 100mA
[Indicator] Operation indicator(red), Operation setting indicator(green)
[Operation mode] NO
[Protective circuit] Surge suppressor
[Output short-cut protection
[Ambient temperature] -25 to 70 CEL(with no icing or condensation)
[Ambient humidity] 35 to 95 %RH(with no condensation)
[Temperature influence] +/- 20% Max. of sensing distance in temperature range of -25 to +70 CEL
(As the basis for sensing distance of 23CEL)
[Voltage influence] +/- 1% Max. of sensing distance in rated voltage range +/- 15%. (As the basis for sensing distance at standard power voltage)
[Degree of protection] IEC60529: IP67
[Connection method] Pre-wired models (Cable length: 2 m)
[Weight (Packed state)] approx. 190 g

(1)

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
