Description
[Sensing method] Through-beam (Emitter + Receiver)
[Application] Small type
[Sensing distance] 100 mm (Infrared light)
[Standard sensing object] Opaque, 2-mm dia. min.
[Directional angle] Emitter/Receiver: 10 to 60 deg. each
[Light source (wavelength)] Infrared LED (950 nm)
[Ambient illuminance (Receiver side)] Incandescent lamp: 3,000 lx max., Sunlight 10,000 lx max.
[Ambient temperature range] Operating/Storage: -25 CEL to 70 CEL (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500VDC
[Dielectric strength] 500 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
[Degree of protection] IEC 60529,IP64,Limited to indoor use
[Connection method] Pre-wired models (standard length: 2 m)
[Weight] Approx. 50 g
[Material] Case: Polycarbonate
Lens: Polycarbonate
[Accessories] Instruction manual
(1)
[Application] Small type
[Sensing distance] 100 mm (Infrared light)
[Standard sensing object] Opaque, 2-mm dia. min.
[Directional angle] Emitter/Receiver: 10 to 60 deg. each
[Light source (wavelength)] Infrared LED (950 nm)
[Ambient illuminance (Receiver side)] Incandescent lamp: 3,000 lx max., Sunlight 10,000 lx max.
[Ambient temperature range] Operating/Storage: -25 CEL to 70 CEL (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500VDC
[Dielectric strength] 500 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
[Degree of protection] IEC 60529,IP64,Limited to indoor use
[Connection method] Pre-wired models (standard length: 2 m)
[Weight] Approx. 50 g
[Material] Case: Polycarbonate
Lens: Polycarbonate
[Accessories] Instruction manual
(1)

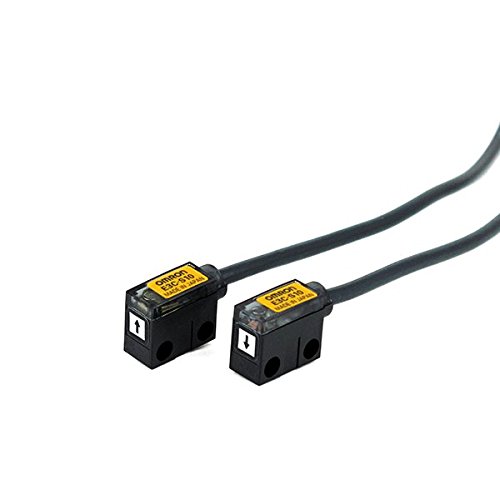

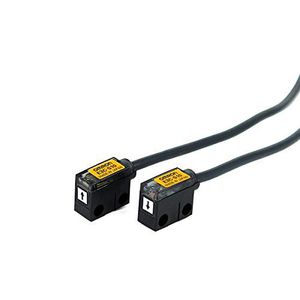

OMRON E3C-S10 2M Compact Head Amplifier-separated Photoelectric Sensor (Through-beam)(Small type)(Sensing distance 100mm) NN
Current Price
$71.4
Average
$67.21
Min Price
$65
Max Price
$71.4
Price dynamics
6%
Description
[Sensing method] Through-beam (Emitter + Receiver)
[Application] Small type
[Sensing distance] 100 mm (Infrared light)
[Standard sensing object] Opaque, 2-mm dia. min.
[Directional angle] Emitter/Receiver: 10 to 60 deg. each
[Light source (wavelength)] Infrared LED (950 nm)
[Ambient illuminance (Receiver side)] Incandescent lamp: 3,000 lx max., Sunlight 10,000 lx max.
[Ambient temperature range] Operating/Storage: -25 CEL to 70 CEL (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500VDC
[Dielectric strength] 500 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
[Degree of protection] IEC 60529,IP64,Limited to indoor use
[Connection method] Pre-wired models (standard length: 2 m)
[Weight] Approx. 50 g
[Material] Case: Polycarbonate
Lens: Polycarbonate
[Accessories] Instruction manual
(1)
[Application] Small type
[Sensing distance] 100 mm (Infrared light)
[Standard sensing object] Opaque, 2-mm dia. min.
[Directional angle] Emitter/Receiver: 10 to 60 deg. each
[Light source (wavelength)] Infrared LED (950 nm)
[Ambient illuminance (Receiver side)] Incandescent lamp: 3,000 lx max., Sunlight 10,000 lx max.
[Ambient temperature range] Operating/Storage: -25 CEL to 70 CEL (with no icing or condensation)
[Ambient humidity range] Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
[Insulation resistance] 20 M Ohm min. at 500VDC
[Dielectric strength] 500 VAC at 50/60 Hz for 1 minute
[Vibration resistance] Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
[Shock resistance] Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
[Degree of protection] IEC 60529,IP64,Limited to indoor use
[Connection method] Pre-wired models (standard length: 2 m)
[Weight] Approx. 50 g
[Material] Case: Polycarbonate
Lens: Polycarbonate
[Accessories] Instruction manual
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
