Description

[Type] Standard models
[Connecting method] Wire-saving Connector
[Inputs/outputs] 1 output
[Model] NPN output
[Light source (wavelength)] Red, 4-element LED (625 nm)
[Power supply voltage] 10 to 30 VDC, including 10% ripple (p-p)
[Power consumption] Normal mode: 960 mW max. (Current consumption: 40 mA max.),
Eco ON: 720 mW max. (Current consumption: 30 mA max.),
Eco LO: 840 mW max. (Current consumption: 35 mA max.)
[Control output] Load power supply voltage: 30 VDC max., open-collector output
Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max.
[Indicators] 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
[Protection circuits] Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
[Maximum connectable Units] 30
[Ambient illumination (Receiver side)] Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
[Altitude] 2,000 m max.
[Installation environment] Pollution degree 3 (as per IEC 60947-1)
[Insulation resistance] 20 M Ohm min. (at 500VDC)
[Dielectric strength] 1,000 VAC at 50/60 Hz for 1 min
[Weight(packed state/Sensor only)] Approx. 60g/approx. 20g
[Accessories] Instruction Manual

(1)

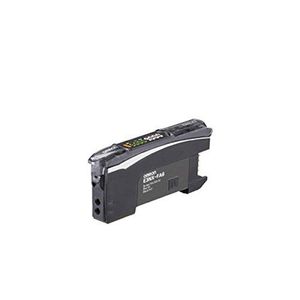

OMRON E3NX-FA6 Smart Fiber Amplifier Units (Standard models)(Wire-saving Connector)(1 output)(NPN output) NN

Price is below average

Current Price

$181.94

Average

$191.77

Min Price

$166.21

Max Price

$440.56

Price dynamics

5%

Description

[Type] Standard models
[Connecting method] Wire-saving Connector
[Inputs/outputs] 1 output
[Model] NPN output
[Light source (wavelength)] Red, 4-element LED (625 nm)
[Power supply voltage] 10 to 30 VDC, including 10% ripple (p-p)
[Power consumption] Normal mode: 960 mW max. (Current consumption: 40 mA max.),
Eco ON: 720 mW max. (Current consumption: 30 mA max.),
Eco LO: 840 mW max. (Current consumption: 35 mA max.)
[Control output] Load power supply voltage: 30 VDC max., open-collector output
Load current: Groups of 1 to 3 Amplifier Units: 100 mA max., Groups of 4 to 30 Amplifier Units: 20 mA max.
(Residual voltage: At load current of less than 10 mA: 1 V max. At load current of 10 to 100 mA: 2 V max.)
OFF current: 0.1 mA max.
[Indicators] 7-segment displays (Sub digital display: green, Main digital display: white)
Display direction: Switchable between normal and reversed.
OUT indicator (orange), L/D indicator (orange), ST indicator (blue), DPC indicator (green), and OUT selection indicator (orange, only on models with 2 outputs)
[Protection circuits] Power supply reverse polarity protection, output short-circuit protection, and output reverse polarity protection
[Maximum connectable Units] 30
[Ambient illumination (Receiver side)] Incandescent lamp: 20,000 lx max., Sunlight: 30,000 lx max.
[Altitude] 2,000 m max.
[Installation environment] Pollution degree 3 (as per IEC 60947-1)
[Insulation resistance] 20 M Ohm min. (at 500VDC)
[Dielectric strength] 1,000 VAC at 50/60 Hz for 1 min
[Weight(packed state/Sensor only)] Approx. 60g/approx. 20g
[Accessories] Instruction Manual

(1)

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
