Description
[Sensing method] Through-beam
[Appearance] Cylindrical(Top-view)
[Sensing distance] 0 m to 1 m
[Standard sensing object] Opaque 2 mm dia. Min.
[Minimum sensing object] 2 mm dia. Min.
[Directional angle] Emitter:2 to 20 DEG
Receiver:2 to 70 DEG
[Light source] Red LED (Emission wave length: 650nm)
[Power supply voltage] 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
[Current consumption] Emitter: 10mA DC Max.
Receiver: 20mA DC Max.
[Control output (Output type)] NPN open collector output
Load current: 0 to 50 mA
Residual voltage: (DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 50mA)
[Operation mode] Dark-ON
[Load power supply voltage] 26.4 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
[Response time] 1ms Max.
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator(orange), Stability indicator(green)
[Weight] Approx. 40 g
[Tightening torque] 0.15 N.mMax. (with M2 screw via flat washers or spring washers)
[Material] Case: PBT
Lens: Denatured Polyarylate
[Accessories] Instruction manual, Set screws for mounting(M2*14), Nuts
(1)
[Appearance] Cylindrical(Top-view)
[Sensing distance] 0 m to 1 m
[Standard sensing object] Opaque 2 mm dia. Min.
[Minimum sensing object] 2 mm dia. Min.
[Directional angle] Emitter:2 to 20 DEG
Receiver:2 to 70 DEG
[Light source] Red LED (Emission wave length: 650nm)
[Power supply voltage] 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
[Current consumption] Emitter: 10mA DC Max.
Receiver: 20mA DC Max.
[Control output (Output type)] NPN open collector output
Load current: 0 to 50 mA
Residual voltage: (DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 50mA)
[Operation mode] Dark-ON
[Load power supply voltage] 26.4 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
[Response time] 1ms Max.
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator(orange), Stability indicator(green)
[Weight] Approx. 40 g
[Tightening torque] 0.15 N.mMax. (with M2 screw via flat washers or spring washers)
[Material] Case: PBT
Lens: Denatured Polyarylate
[Accessories] Instruction manual, Set screws for mounting(M2*14), Nuts
(1)

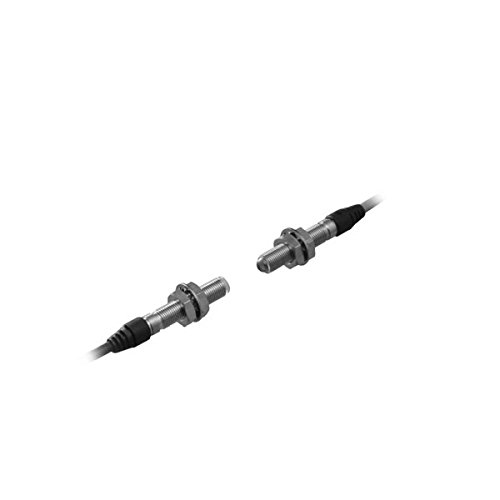

OMRON E3T-CT12 2M Small Cylindrical Sensors (Through-beam)(Emitter+Receive)(Dark-ON)(NPN output) NN
Current Price
$120.35
Average
$117.14
Min Price
$109.9
Max Price
$123.86
Price dynamics
3%
Description
[Sensing method] Through-beam
[Appearance] Cylindrical(Top-view)
[Sensing distance] 0 m to 1 m
[Standard sensing object] Opaque 2 mm dia. Min.
[Minimum sensing object] 2 mm dia. Min.
[Directional angle] Emitter:2 to 20 DEG
Receiver:2 to 70 DEG
[Light source] Red LED (Emission wave length: 650nm)
[Power supply voltage] 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
[Current consumption] Emitter: 10mA DC Max.
Receiver: 20mA DC Max.
[Control output (Output type)] NPN open collector output
Load current: 0 to 50 mA
Residual voltage: (DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 50mA)
[Operation mode] Dark-ON
[Load power supply voltage] 26.4 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
[Response time] 1ms Max.
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator(orange), Stability indicator(green)
[Weight] Approx. 40 g
[Tightening torque] 0.15 N.mMax. (with M2 screw via flat washers or spring washers)
[Material] Case: PBT
Lens: Denatured Polyarylate
[Accessories] Instruction manual, Set screws for mounting(M2*14), Nuts
(1)
[Appearance] Cylindrical(Top-view)
[Sensing distance] 0 m to 1 m
[Standard sensing object] Opaque 2 mm dia. Min.
[Minimum sensing object] 2 mm dia. Min.
[Directional angle] Emitter:2 to 20 DEG
Receiver:2 to 70 DEG
[Light source] Red LED (Emission wave length: 650nm)
[Power supply voltage] 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
[Current consumption] Emitter: 10mA DC Max.
Receiver: 20mA DC Max.
[Control output (Output type)] NPN open collector output
Load current: 0 to 50 mA
Residual voltage: (DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 50mA)
[Operation mode] Dark-ON
[Load power supply voltage] 26.4 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
[Response time] 1ms Max.
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator(orange), Stability indicator(green)
[Weight] Approx. 40 g
[Tightening torque] 0.15 N.mMax. (with M2 screw via flat washers or spring washers)
[Material] Case: PBT
Lens: Denatured Polyarylate
[Accessories] Instruction manual, Set screws for mounting(M2*14), Nuts
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
