Description

[Sensing method] Diffuse-reflective
[Sensing distance] 5 mm to 100 mm (White paper 100*100mm)
[Differential distance] 20% Max. of sensing distance
[Light source] Infrared LED (Emission wave length: 860nm)
[Power supply voltage] 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
[Current consumption] 30mA DC Max.
[Control output]Output type: NPN open collector output
Load current: 0 to 100 mA
Residual voltage: (DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 100 mA)
[Operation mode] Light-ON/Dark-ON selectable
[Load power supply voltage] 26.4 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Mutual interference prevention
[Response time] 1ms Max.
[Sensitivity setting] Single-turn adjustment
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Applicable standard (EC Directive (Low Voltage Directive))] EN60947-5-2
[Applicable standard (EC Directive (EMC))] EMI: EN60947-5-2
Emission Enclosure: EN55011 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Burst: IEC61000-4-4
[Conformed standard (EC Directive (CE marking))] Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator(orange), Stability indicator(green)
[Weight (packed state)] Approx. 65 g
[Tightening torque] 0.5 N.mMax. (with M3 screw)
[Accessories] Instruction manual

(1)

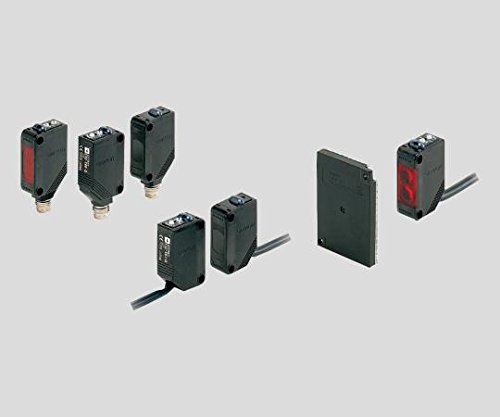

OMRON E3Z-D61 2M Compact Photoelectric Sensor (With Built-in Amplifier)(Diffuse-Reflective)(Pre-Wired Type)(Sensing Distance 5 to 100 mm)(NPN) NN

Current Price

$116.28

Average

$81.69

Min Price

$16.99

Max Price

$116.28

Price dynamics

30%

Description

[Sensing method] Diffuse-reflective
[Sensing distance] 5 mm to 100 mm (White paper 100*100mm)
[Differential distance] 20% Max. of sensing distance
[Light source] Infrared LED (Emission wave length: 860nm)
[Power supply voltage] 12 to 24 VDC -10% to 10% (ripple(p-p) :10% Max.)
[Current consumption] 30mA DC Max.
[Control output]Output type: NPN open collector output
Load current: 0 to 100 mA
Residual voltage: (DC) 1 V Max. (Load current: Less than 10mA)
(DC) 2 V Max. (Load current: 10 to 100 mA)
[Operation mode] Light-ON/Dark-ON selectable
[Load power supply voltage] 26.4 VDC Max.
[Protective circuit] Surge suppressor
Output short-cut protection
Output reverse polarity protection
Power supply reverse polarity protection
Mutual interference prevention
[Response time] 1ms Max.
[Sensitivity setting] Single-turn adjustment
[Insulation resistance] 20 M OHM Min. at 500 VDC between charged parts and the case
[Dielectric strength] 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case
[Degree of protection] IEC60529: IP67
[Applicable standard (EC Directive (Low Voltage Directive))] EN60947-5-2
[Applicable standard (EC Directive (EMC))] EMI: EN60947-5-2
Emission Enclosure: EN55011 Group 1 class A
EMS: EN60947-5-2
Immunity ESD: IEC61000-4-2
Immunity RF-interference: IEC61000-4-3
Immunity Burst: IEC61000-4-4
[Conformed standard (EC Directive (CE marking))] Equipped
[Connection method] Pre-wired models (Cable length: 2 m)
[Indicator] Operation indicator(orange), Stability indicator(green)
[Weight (packed state)] Approx. 65 g
[Tightening torque] 0.5 N.mMax. (with M3 screw)
[Accessories] Instruction manual

(1)

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
