Description

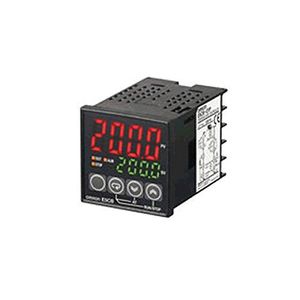

[Product Name]Temperature Controller
[Model](Power supply voltage)
E5CB-R1TC(100 to 240 VAC)
[Size]E5CB 48 x 48 mm
[Input type]Thermocouple
[Alarm output]1
[Control output]Relay output
Ratings
[Supply voltage]100 to 240 VAC 50/60 Hz
[Operating voltage range]85% to 110% of rated supply voltage
[Power consumption]Approx. 3.5 VA
[Sensor Input]K,J,T,R,or S(JIS C 1602-1995,IEC60584-1)
[Control output]SPST-NO,250 VAC,3 A(resistive load),electrical life100,000 operations,minimum applicable load5 V,10 mA
[Alarm output]Relay output SPST-NO,250 VAC,1 A(resistive load),electrical life100,000 operations,minimum load5 V,10 mA
[Control method]ON/OFF control or 2-PID control(with auto-tuning)
[Setting method]Digital setting using front panel keys
[Indication method]7-segment digital display and individual indicators ,Character height16.2 mm(PV)
[Other functions]Temperature input shift,run/stop,protection functions,etc.
[Ambient operating temperature]?10 to 55 degree(with no condensation or icing)/With a three-year guarantee?10 to 50 degree
[Ambient operating humidity]25% to 85%
[Storage temperature]?25 to 65 degree(with no condensation or icing)
Models with Thermocouple Inputs
[Set value]Input type[Range(Celsius / Fahrenheit)]
[0]K[?200 to 1,300 / ?300 to 2,300 ]
[1]K[?20.0 to 500.0 / 0.0 to 900.0 ]
[2]J[?100 to 850 / ?100 to 1500 ]
[3]J[?20.0 to 400.0 / 0.0 to 750.0 ]
[4]T[?200 to 400 / ?300 to 700 ]
[5]T[?199.9 to 400.0 / ?199.9 to 700.0 ]
[6]R[0 to 1,700 / 0 to 3,000 ]
[7]S[0 to 1,700 / 0 to 3,000 ]
Default setting0
Applicable standards(K,J,T,R,S)JIS C1602-1995 and IEC 60584-1
