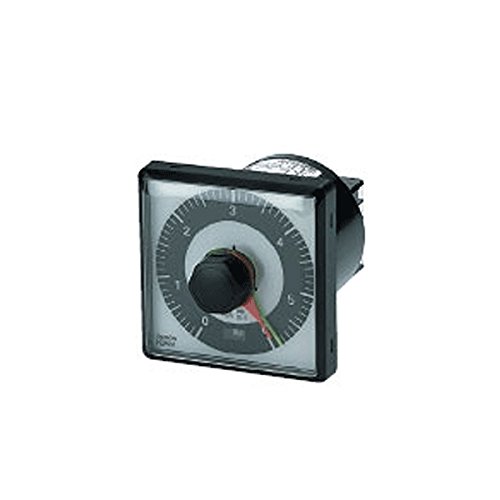

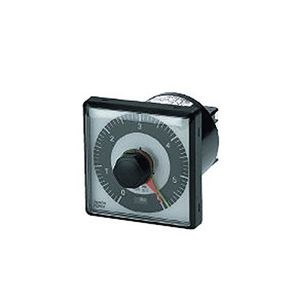

OMRON H3AM-NS-A AC100-240 Analog Timer (Rated supply voltage:100 to 240 VAC) NN

[Music] there are four parts to the omron h3c our timer that you'll need to be familiar with when attempting to set the on and off cycles and the upper left are to status lights the green off light and the red on light these indicate the current active cycle on the timer for example if the timer's in the off cycle only the green off light will be illuminated and when the timer's in the on cycle only the red on light will be illuminated below the status lights in the lower left corner is the time range selector turning the selector will change the range indicators inside the windows on the face of the dial and in the upper and lower corners on the right side of the timer or the on and off timer increment labels by turning the appropriate selector you can change the timer increments to hours minutes seconds and tenths of seconds the last part is the dial itself the dial consists of an out
