Description
[Rated supply voltage] 24VDC If power supply incorporates a single-phase full-wave rectifier.
[Operating voltage range] 85% to 110% of rated supply voltage
[Power consumption (Relay ON)] 1.1W
[Power consumption (Relay OFF)] 0.1W
[Reset voltage] 10% max. of rated supply voltage
[Number of time ranges] 1
[Time ranges] 5s to 120s
[Operating mode] Power ON-delay
[Control output (Type)] Time-limit: DPDT
[Control output (Contact output)]
Switching capacities (resistive load (cos (phi) = 1)): 250VAC 5A
Minimum applicable load: 1 mA at 5 VDC (failure level: P)
[Operating resetting] Time-limit operation/Self-reset
[Weight (Main)] Approx. 50 g
[External connection method] Plug-in terminal
[Case color] Munsell 5Y7/1 (Light gray)
(1)
[Operating voltage range] 85% to 110% of rated supply voltage
[Power consumption (Relay ON)] 1.1W
[Power consumption (Relay OFF)] 0.1W
[Reset voltage] 10% max. of rated supply voltage
[Number of time ranges] 1
[Time ranges] 5s to 120s
[Operating mode] Power ON-delay
[Control output (Type)] Time-limit: DPDT
[Control output (Contact output)]
Switching capacities (resistive load (cos (phi) = 1)): 250VAC 5A
Minimum applicable load: 1 mA at 5 VDC (failure level: P)
[Operating resetting] Time-limit operation/Self-reset
[Weight (Main)] Approx. 50 g
[External connection method] Plug-in terminal
[Case color] Munsell 5Y7/1 (Light gray)
(1)

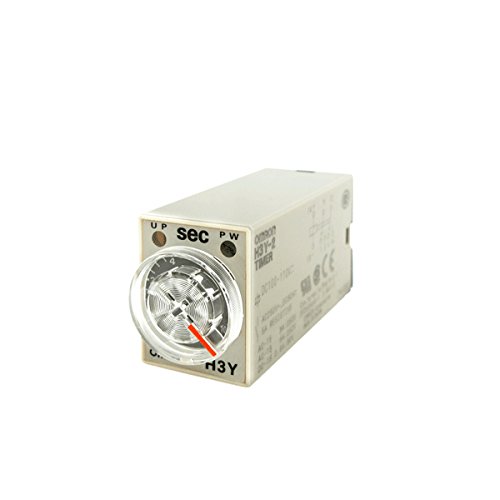

OMRON H3Y-2 DC24V 120S Solid-state Timer (DPDT)(Supply voltage DC24V) NN
Current Price
$41.53
Average
$40.87
Min Price
$38.64
Max Price
$41.86
Price dynamics
2%
Description
[Rated supply voltage] 24VDC If power supply incorporates a single-phase full-wave rectifier.
[Operating voltage range] 85% to 110% of rated supply voltage
[Power consumption (Relay ON)] 1.1W
[Power consumption (Relay OFF)] 0.1W
[Reset voltage] 10% max. of rated supply voltage
[Number of time ranges] 1
[Time ranges] 5s to 120s
[Operating mode] Power ON-delay
[Control output (Type)] Time-limit: DPDT
[Control output (Contact output)]
Switching capacities (resistive load (cos (phi) = 1)): 250VAC 5A
Minimum applicable load: 1 mA at 5 VDC (failure level: P)
[Operating resetting] Time-limit operation/Self-reset
[Weight (Main)] Approx. 50 g
[External connection method] Plug-in terminal
[Case color] Munsell 5Y7/1 (Light gray)
(1)
[Operating voltage range] 85% to 110% of rated supply voltage
[Power consumption (Relay ON)] 1.1W
[Power consumption (Relay OFF)] 0.1W
[Reset voltage] 10% max. of rated supply voltage
[Number of time ranges] 1
[Time ranges] 5s to 120s
[Operating mode] Power ON-delay
[Control output (Type)] Time-limit: DPDT
[Control output (Contact output)]
Switching capacities (resistive load (cos (phi) = 1)): 250VAC 5A
Minimum applicable load: 1 mA at 5 VDC (failure level: P)
[Operating resetting] Time-limit operation/Self-reset
[Weight (Main)] Approx. 50 g
[External connection method] Plug-in terminal
[Case color] Munsell 5Y7/1 (Light gray)
(1)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
