Description

[Operation/resetting system]Time-limit operation/self-resetting
[Time-limit contact]4PDT
[Supply voltage]200 to 230 VAC(50/60Hz)
[Mounting]Surface/DIN-track mounting(with socket)

Time Ranges
[Rated time]60 s
[Time setting range] 2.0 to 60 s
[Item] H3Y-4
[Rated supply voltage *2
[Reset voltage] 10% min. of rated supply voltage *2
[Power consumption] Relay ON: Approx. 1.8 VA (1.6 W) at 120 VAC, 60 Hz
Relay OFF: Approx. 1 VA (0.6 W) at 120 VAC, 60 Hz
[Control outputs] 3 A at 250 VAC, resistive load (cos phi = 1)
The minimum applicable load is 1 mA at 1 VDC (P reference value).
Contact materials: Au-clad + Ag-alloy
*1. Do not use the output from an inverter as the power supply. Refer toSafety Precautions for All Times for details.
*2. Use the Timer within 90% to 110% of the rated supply voltage (95% to110% for 12 VDC) when using it continuously
under an ambient operating temperature of 50 deg.(C).
*3. Set the reset voltage as follows to ensure proper resetting.
100 to 120 VAC:10 VAC max.
200 to 230 VAC:20 VAC max.
100 to 110 VDC:10 VDC max.
*4. Refer to Safety Precautions for All Times when combining the Timerwith an AC 2-wire proximity sensor.
*5. A diode to prevent reverse voltages is provided only on models witha DC power supply.

(1)

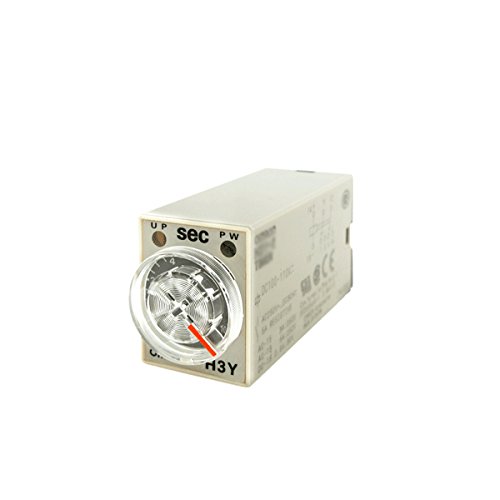

OMRON H3Y-4 AC200/230 60S 50/60Hz Solid-state Timer (4PDT)(Supply voltage 200 to 230VAC) NN

Current Price

$53.04

Average

$47.67

Min Price

$39.39

Max Price

$54.58

Price dynamics

10%

Description

[Operation/resetting system]Time-limit operation/self-resetting
[Time-limit contact]4PDT
[Supply voltage]200 to 230 VAC(50/60Hz)
[Mounting]Surface/DIN-track mounting(with socket)

Time Ranges
[Rated time]60 s
[Time setting range] 2.0 to 60 s
[Item] H3Y-4
[Rated supply voltage *2
[Reset voltage] 10% min. of rated supply voltage *2
[Power consumption] Relay ON: Approx. 1.8 VA (1.6 W) at 120 VAC, 60 Hz
Relay OFF: Approx. 1 VA (0.6 W) at 120 VAC, 60 Hz
[Control outputs] 3 A at 250 VAC, resistive load (cos phi = 1)
The minimum applicable load is 1 mA at 1 VDC (P reference value).
Contact materials: Au-clad + Ag-alloy
*1. Do not use the output from an inverter as the power supply. Refer toSafety Precautions for All Times for details.
*2. Use the Timer within 90% to 110% of the rated supply voltage (95% to110% for 12 VDC) when using it continuously
under an ambient operating temperature of 50 deg.(C).
*3. Set the reset voltage as follows to ensure proper resetting.
100 to 120 VAC:10 VAC max.
200 to 230 VAC:20 VAC max.
100 to 110 VDC:10 VDC max.
*4. Refer to Safety Precautions for All Times when combining the Timerwith an AC 2-wire proximity sensor.
*5. A diode to prevent reverse voltages is provided only on models witha DC power supply.

(1)

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
