Description

[Model] Inverse type
[Control voltage] 200/220/240 VAC
[Reset] Manual
[Overcurrent operating value] 115% of current SV.

Ratings
[Motor circuit]
Voltage: 500 VAC max. 3-phase (primary voltage at SET current converter)
Current: 1 to 80 A or 64 to 160 A 3-phase (primary current at SET current converter)
[Power supply circuit]
Voltage: 100/110/120 VAC, 200/220/240 VAC, or 380/400/440 VAC 3-phase
(treat as a single phase voltage when the reverse-phase function is not needed)
Voltage fluctuation: +10/-15% max. of the rated voltage (+10/-50% max. for open-phase function)
Frequency: 50/60 Hz +/-5%
[Output relay contact]
Configuration: SPDT
Capacity: Refer to the table below.
[Power consumption] approx. 7 VA
[Manual reset]
NO: 3 A (cos phi = 1.0)/1.5 A (cos phi = 0.3 to 0.4) at 240 VAC
NC: 3 A (cos phi = 1.0)/2 A (cos phi = 0.3 to 0.4) at 240 VAC
[Automatic reset]
3 A (cos phi = 1.0)/2 A (cos phi = 0.4) at 240 VAC
[Case color] Munsell 5Y7/1
[Weight] Approx. 170 to 230 g

1

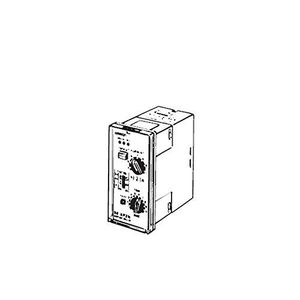

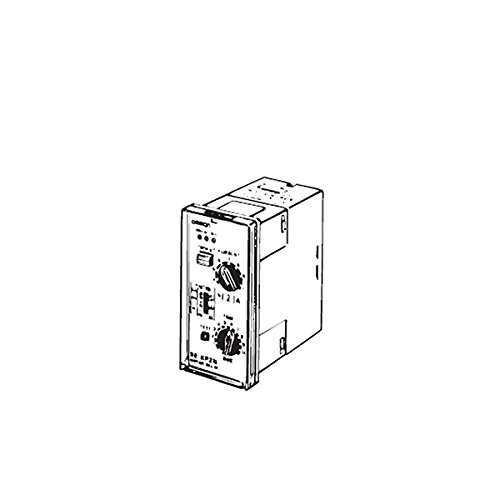

OMRON SE-KP2N (200/220/240 VAC) Motor Protective Relay Flush mount type (Panel-in model) NN

Current Price

$143.74

Average

$143.19

Min Price

$139.55

Max Price

$148.01

Price dynamics

0%

Description

[Model] Inverse type
[Control voltage] 200/220/240 VAC
[Reset] Manual
[Overcurrent operating value] 115% of current SV.

Ratings
[Motor circuit]
Voltage: 500 VAC max. 3-phase (primary voltage at SET current converter)
Current: 1 to 80 A or 64 to 160 A 3-phase (primary current at SET current converter)
[Power supply circuit]
Voltage: 100/110/120 VAC, 200/220/240 VAC, or 380/400/440 VAC 3-phase
(treat as a single phase voltage when the reverse-phase function is not needed)
Voltage fluctuation: +10/-15% max. of the rated voltage (+10/-50% max. for open-phase function)
Frequency: 50/60 Hz +/-5%
[Output relay contact]
Configuration: SPDT
Capacity: Refer to the table below.
[Power consumption] approx. 7 VA
[Manual reset]
NO: 3 A (cos phi = 1.0)/1.5 A (cos phi = 0.3 to 0.4) at 240 VAC
NC: 3 A (cos phi = 1.0)/2 A (cos phi = 0.3 to 0.4) at 240 VAC
[Automatic reset]
3 A (cos phi = 1.0)/2 A (cos phi = 0.4) at 240 VAC
[Case color] Munsell 5Y7/1
[Weight] Approx. 170 to 230 g

1

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
