Description

The Pelco ES30TI Positioning System (35mm Lens, 24VAC) includes a receiver, pan/tilt, 10" infrared camera enclosure and a thermal imaging camera. The system has an input voltage of 24VAC and comes with a pedestal mount, and includes an EPP pedestal adapter plate for use with the PM2000/PM2010 mount for pedestal application. The LWIR (Long Wave Infrared) camera has an uncooled microbolometer detector and delivers 320 x 240 thermal video. The uncooled microbolometer collects light in a wide spectrum (7.5 - 14 μm) to provide a better penetration through smoke, smog, dust, water vapor etc. and produces high-resolution infrared images with greater details. The camera provides a pixel size of 38 micrometers, and sensitivity below 40mK at f/1.0. It offers multiple display formats, including white hot, black hot, and color signatures, and has a 35mm (f/1.4) lens with 2x digital zoom and a 20° horizontal field-of-view. With die-cast, extruded, and sheet aluminum construction and stainless steel hardware, the system is suitable for both indoor and outdoor applications, and being gear-free, it needs minimum maintenance. Capable of operating in 90mph winds, it can withstand wind velocities up to 13mph, and can function in temperatures ranging from -50 to 122° F (-45 to 50° C).. Within 2 hours of starting up, the system can de-ice and be operational from a temperature of -13°F (-25°C). The system has a thermostatically controlled built-in heater, window defroster/defogger, sun shroud, and insulation blanket. Variable pan and tilt speeds range from 0.1 - 40°/sec in manual pan and 0.1 - 20°/sec in manual tilt. The system has pan preset and turbo speeds of 100°/sec in wind speeds of 50mph and 50°/sec in the 90mph wind speed. Capable of 360° continuous pan rotation, the pan/tilt head has a tilt preset speed of 30°/sec and a tilt range of +33 to -83°. The 64 programmable preset positions have a preset accuracy of one-quarter degree.

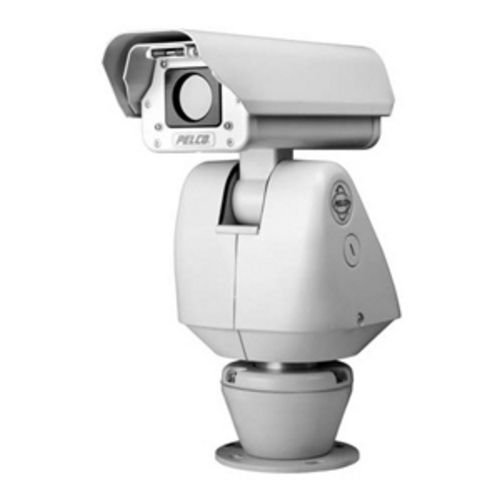

PELCO ES3035TI2N Esprit thermal 35mm NTSC pedestal mount

Current Price

$9 000

Average

$9 000

Min Price

$9 000

Max Price

$9 000

Description

The Pelco ES30TI Positioning System (35mm Lens, 24VAC) includes a receiver, pan/tilt, 10" infrared camera enclosure and a thermal imaging camera. The system has an input voltage of 24VAC and comes with a pedestal mount, and includes an EPP pedestal adapter plate for use with the PM2000/PM2010 mount for pedestal application. The LWIR (Long Wave Infrared) camera has an uncooled microbolometer detector and delivers 320 x 240 thermal video. The uncooled microbolometer collects light in a wide spectrum (7.5 - 14 μm) to provide a better penetration through smoke, smog, dust, water vapor etc. and produces high-resolution infrared images with greater details. The camera provides a pixel size of 38 micrometers, and sensitivity below 40mK at f/1.0. It offers multiple display formats, including white hot, black hot, and color signatures, and has a 35mm (f/1.4) lens with 2x digital zoom and a 20° horizontal field-of-view. With die-cast, extruded, and sheet aluminum construction and stainless steel hardware, the system is suitable for both indoor and outdoor applications, and being gear-free, it needs minimum maintenance. Capable of operating in 90mph winds, it can withstand wind velocities up to 13mph, and can function in temperatures ranging from -50 to 122° F (-45 to 50° C).. Within 2 hours of starting up, the system can de-ice and be operational from a temperature of -13°F (-25°C). The system has a thermostatically controlled built-in heater, window defroster/defogger, sun shroud, and insulation blanket. Variable pan and tilt speeds range from 0.1 - 40°/sec in manual pan and 0.1 - 20°/sec in manual tilt. The system has pan preset and turbo speeds of 100°/sec in wind speeds of 50mph and 50°/sec in the 90mph wind speed. Capable of 360° continuous pan rotation, the pan/tilt head has a tilt preset speed of 30°/sec and a tilt range of +33 to -83°. The 64 programmable preset positions have a preset accuracy of one-quarter degree.

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
