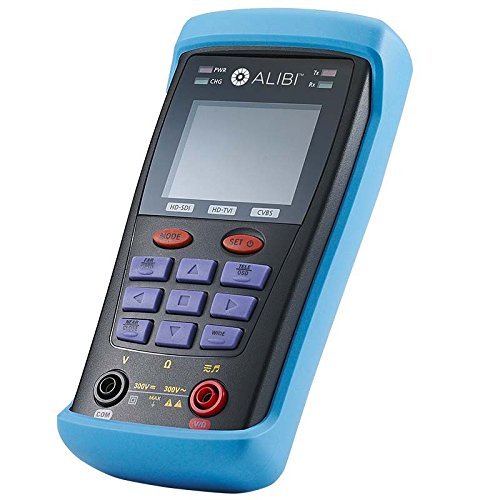

The hand-held tester enables you to test HD-TVI, HD-SDI, and CVBS CCTV security cameras.

The 2.4″ built-in TFT LCD display enables you to easily view and adjust camera settings and functionality. A built-in 4x zoom provides easy focusing of HD cameras.

The field monitor tester supports the following:

HD-TVI supported resolutions: 720p or 1080p
HD-SDI supported resolutions: 720p, 1080i or 1080p
CVBS NTSC/PAL video signal formats

The field tester features a digital multi-meter with AC/DC/resistance/continuity, RS-422 and RS-485 communication tester and PTZ tester/analyzer that shows PTZ information to simplify installation. Does not Power Cameras. Cameras must be powered with an external power before you can test the video with this Testing Monitor.

maging Specifications:

Camera Resolution (px):HD-TVI: 720p or 1080p
HD-SDI: 720p, 1080i or 1080p
Digital Zoom: 4x

Display Specifications:

Graphic Search Display: Yes
LCD: 2.4"

PTZ Features:
PTZ Control: Multiple Protocol

Physical Characteristics:
Dimensions: 6.27" H x 3.11" W x 1.26" D
Diagonal Size (in): 2.4" LCD Display
Operating Temperature (F): 14° ~ 104°
Product Color: Gray
Weight (lb): 0.77

Power Requirements:

Power Supply Included: Yes
Battery Life (Hours): 8
Battery Powered: Yes
Power (w): 12V ±10%, above 1A

Wireless Specifications:

Baudrate Communication: 2400bps ~ 38400bps

Connectors:
RS-422: Yes
RS-485: Yes
Video In: BNC

What's Included:

(1) 2.4″ LCD HD-TV/ HD-SDI/CVBS CCTV field monitor tester
(1) BNC cable
(1) Power adapter
(1) Test power leads
(1) Protective cover
(1) User manual
