Description
Specification:
RFID Access Controller:
User Capacity: 1000
Card Reading Type: ID
Card Reading Distance: 5-15 cm
Material: Metal body
Working Voltage: DC12V
External Function: External W26 reading head
User Password: 6-digit opening password
Opening Method: Card, password, card + password
Working Temperature: -10°C ~ 70°C
Working Humidity: 0%-100%
Access Controller Size: Approx.92*92mm/3.6*3.6in
Power Supply Controller:
Input Voltage: AC 110-240V (global voltage)
Output Voltage: DC12V/3A
Adjustable Lock Delay: 0-15s
Voltage: DC12V
Current: 200mA
Power Supply Controller Size: Approx.140*90*38mm/5.5*3.5*1.5in
Magnetic Lock:
Holding Force: 180kg(620lbs)
Mode: NC (locked supplied with power), fault protection mode
Voltage: DC12V
Current Consumption: 0.15A~0.45A
Safety Function: Built-in voltage spike suppressor
Opening Method: 90 degrees swing door
Application: wooden doors, glass doors, metal doors, fireproof doors, etc.
Magnetic Lock Size: Approx.171*33*21mm/6.7*1.3*0.8in
Remote Control:
It is divided into a receiver and a transmitter. The receiver is connected to the access controller power supply, and the transmitter is used for remote unlocking.
Exit Button:
Attach an extra unlock button to provide more unlocking methods.

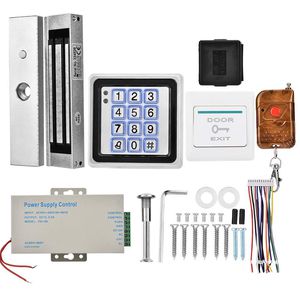

Package List:
1 * FRID Access Controller (With 1 user manual and 1 connector lug)
1 * Power Supply Controller (With 1 user manual)
1 * 180KG Magnetic Lock (With 1 user manual and 1 screw bag)
1 * Remote Control (With 1 built-in CR2032 cell battery and 1 black box receiver)
1 * Exit Button (With 2 screws)
RFID Access Controller:
User Capacity: 1000
Card Reading Type: ID
Card Reading Distance: 5-15 cm
Material: Metal body
Working Voltage: DC12V
External Function: External W26 reading head
User Password: 6-digit opening password
Opening Method: Card, password, card + password
Working Temperature: -10°C ~ 70°C
Working Humidity: 0%-100%
Access Controller Size: Approx.92*92mm/3.6*3.6in
Power Supply Controller:
Input Voltage: AC 110-240V (global voltage)
Output Voltage: DC12V/3A
Adjustable Lock Delay: 0-15s
Voltage: DC12V
Current: 200mA
Power Supply Controller Size: Approx.140*90*38mm/5.5*3.5*1.5in
Magnetic Lock:
Holding Force: 180kg(620lbs)
Mode: NC (locked supplied with power), fault protection mode
Voltage: DC12V
Current Consumption: 0.15A~0.45A
Safety Function: Built-in voltage spike suppressor
Opening Method: 90 degrees swing door
Application: wooden doors, glass doors, metal doors, fireproof doors, etc.
Magnetic Lock Size: Approx.171*33*21mm/6.7*1.3*0.8in
Remote Control:
It is divided into a receiver and a transmitter. The receiver is connected to the access controller power supply, and the transmitter is used for remote unlocking.
Exit Button:
Attach an extra unlock button to provide more unlocking methods.
Package List:
1 * FRID Access Controller (With 1 user manual and 1 connector lug)
1 * Power Supply Controller (With 1 user manual)
1 * 180KG Magnetic Lock (With 1 user manual and 1 screw bag)
1 * Remote Control (With 1 built-in CR2032 cell battery and 1 black box receiver)
1 * Exit Button (With 2 screws)
RFID Card c,065 Square RFID Door Access Control System Kit With Magnetic Lock Remote Control Exit Button
Current Price
$109.99
Average
$106.69
Min Price
$103.39
Max Price
$109.99
Price dynamics
3%
Description
Specification:
RFID Access Controller:
User Capacity: 1000
Card Reading Type: ID
Card Reading Distance: 5-15 cm
Material: Metal body
Working Voltage: DC12V
External Function: External W26 reading head
User Password: 6-digit opening password
Opening Method: Card, password, card + password
Working Temperature: -10°C ~ 70°C
Working Humidity: 0%-100%
Access Controller Size: Approx.92*92mm/3.6*3.6in
Power Supply Controller:
Input Voltage: AC 110-240V (global voltage)
Output Voltage: DC12V/3A
Adjustable Lock Delay: 0-15s
Voltage: DC12V
Current: 200mA
Power Supply Controller Size: Approx.140*90*38mm/5.5*3.5*1.5in
Magnetic Lock:
Holding Force: 180kg(620lbs)
Mode: NC (locked supplied with power), fault protection mode
Voltage: DC12V
Current Consumption: 0.15A~0.45A
Safety Function: Built-in voltage spike suppressor
Opening Method: 90 degrees swing door
Application: wooden doors, glass doors, metal doors, fireproof doors, etc.
Magnetic Lock Size: Approx.171*33*21mm/6.7*1.3*0.8in
Remote Control:
It is divided into a receiver and a transmitter. The receiver is connected to the access controller power supply, and the transmitter is used for remote unlocking.
Exit Button:
Attach an extra unlock button to provide more unlocking methods.
Package List:
1 * FRID Access Controller (With 1 user manual and 1 connector lug)
1 * Power Supply Controller (With 1 user manual)
1 * 180KG Magnetic Lock (With 1 user manual and 1 screw bag)
1 * Remote Control (With 1 built-in CR2032 cell battery and 1 black box receiver)
1 * Exit Button (With 2 screws)
RFID Access Controller:
User Capacity: 1000
Card Reading Type: ID
Card Reading Distance: 5-15 cm
Material: Metal body
Working Voltage: DC12V
External Function: External W26 reading head
User Password: 6-digit opening password
Opening Method: Card, password, card + password
Working Temperature: -10°C ~ 70°C
Working Humidity: 0%-100%
Access Controller Size: Approx.92*92mm/3.6*3.6in
Power Supply Controller:
Input Voltage: AC 110-240V (global voltage)
Output Voltage: DC12V/3A
Adjustable Lock Delay: 0-15s
Voltage: DC12V
Current: 200mA
Power Supply Controller Size: Approx.140*90*38mm/5.5*3.5*1.5in
Magnetic Lock:
Holding Force: 180kg(620lbs)
Mode: NC (locked supplied with power), fault protection mode
Voltage: DC12V
Current Consumption: 0.15A~0.45A
Safety Function: Built-in voltage spike suppressor
Opening Method: 90 degrees swing door
Application: wooden doors, glass doors, metal doors, fireproof doors, etc.
Magnetic Lock Size: Approx.171*33*21mm/6.7*1.3*0.8in
Remote Control:
It is divided into a receiver and a transmitter. The receiver is connected to the access controller power supply, and the transmitter is used for remote unlocking.
Exit Button:
Attach an extra unlock button to provide more unlocking methods.
Package List:
1 * FRID Access Controller (With 1 user manual and 1 connector lug)
1 * Power Supply Controller (With 1 user manual)
1 * 180KG Magnetic Lock (With 1 user manual and 1 screw bag)
1 * Remote Control (With 1 built-in CR2032 cell battery and 1 black box receiver)
1 * Exit Button (With 2 screws)
