Characteristics:

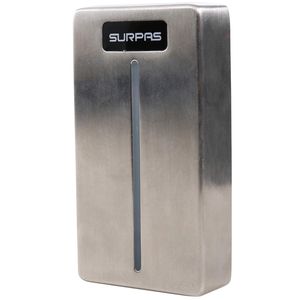

Stainless steel case, anti-vandal
Waterproof, conforms to IP67,can be used either indoor or outdoor in harsh environments
Very low power consumption (30mA)
Wiegand 26 bit output
Easy to install and program
Parameters:
Transmit Frequency: 125KHz
Read Range: Up to 45mm / 1-4/5"
Wiegand Output: Wiegand 26
Power Supply: DC6-16V, Linear supply recommended
Quiescrnt Current: ≤30mA
Operating Temperature: -35℃~60℃ / -31℉~140℉
Operating Humidity: 0%~95%RH(non-condensing)
IP Rating: IP67
Certificates: CE, RoHS, FCC
Cable Distance: Wiegand 150m/500ft（24AWG）
Shell Material: Stainless Steel
Dimensions(LxWxH): 95x50x20mm / 3-3/4"x2"x13/16"
Weight: 380g / 13.4oz
Function Instruction:
1.When swiping prox cards (or tags), the color of LED will turn green, a long sound simulaneously from Buzzer, at the same time, reader send the Wiegand signal out. At last the color of the Led turn red.
2. When the voltage of the LED goes low, the color of it turn green. And when the voltage of it goes high, the color will turn red.
3. When the voltage of BELL wire goes low, the Buzzer will give out sound. And when the time of low voltage over 30s, or the voltage goes high, the Buzzer will be normal.
What's in the box:
1 x Access Reader
1 x Package of mounting screws
1 x User Manual
