Characteristics:

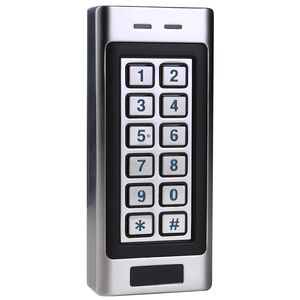

A single entry standalone Access control with integrated keypad and card readerVandal resistant enclosure
Backlit Keypad
Multi-color LED status display
One programmable relay out
1000 users(Card/PIN/Card+PIN)
Low power consumption(50mA)
Anti-Tamper alarm
Latch mode to hold door or gate open
12-24V DC power input
Parameters:
User Capacity: 1000 Cards/PINS
Operating Voltage: 12~24V DC
Idle Current: 50mA
Active Current: 80mA
Keypad: 12 key(2*6)
Proximity Card Reader: EM
Radio Technology: 125KHz Industry Standard Proximity Card
Read Range: 30~60mm / 1-3/16"~2-3/8"
Wiring Connections: Relay Output, Exit Button
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0-99 seconds (5 seconds default)
Lock Output Load: 3 Amp Maximum
Enviroment: Indoor
Operating Temperature: -40℃~60℃ / -40℉~140℉
Operating Humidity: 20%RH-85%RH
Physical: Zinc-Alloy Enclosure
Surface Finish: Powder Coat
Dimension(HxWxT): 130x56x23mm / 5-1/8"x2-3/16"x7/8"
What's in the box:
1 x Access Control Keypad
1 x Manual
1 x Package of Screws
SDPAWA Access Control Keypad RFID Controller Metal Case Anti-Tamper 125KHz EMID Card Reader with Backlit Support 1000 Users for Indoor
Characteristics:
A single entry standalone Access control with integrated keypad and card readerVandal resistant enclosure
Backlit Keypad
Multi-color LED status display
One programmable relay out
1000 users(Card/PIN/Card+PIN)
Low power consumption(50mA)
Anti-Tamper alarm
Latch mode to hold door or gate open
12-24V DC power input
Parameters:
User Capacity: 1000 Cards/PINS
Operating Voltage: 12~24V DC
Idle Current: 50mA
Active Current: 80mA
Keypad: 12 key(2*6)
Proximity Card Reader: EM
Radio Technology: 125KHz Industry Standard Proximity Card
Read Range: 30~60mm / 1-3/16"~2-3/8"
Wiring Connections: Relay Output, Exit Button
Relay: One (NO, NC, Common)
Adjustable Relay Output Time: 0-99 seconds (5 seconds default)
Lock Output Load: 3 Amp Maximum
Enviroment: Indoor
Operating Temperature: -40℃~60℃ / -40℉~140℉
Operating Humidity: 20%RH-85%RH
Physical: Zinc-Alloy Enclosure
Surface Finish: Powder Coat
Dimension(HxWxT): 130x56x23mm / 5-1/8"x2-3/16"x7/8"
What's in the box:
1 x Access Control Keypad
1 x Manual
1 x Package of Screws
