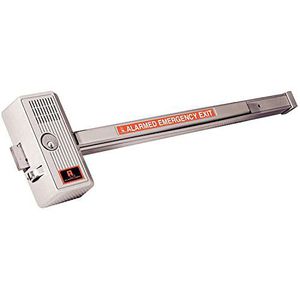

Rim Exit Device, 700, Latch Bolt, UL

installation instructions for the universal hardware rim exit device here are the tools required for installation the product comes with everything else you will need the exit device can be used on single doors or double doors with emollient if your door is narrower than 36 inches remove the end cover and cut section a of the device body to the desired length preparing the door make sure to drill the holes or the outside trim first for the exterior side of the door first measure 40 inches from the floor then measure 2 and 3/4 inches from the edge of the door to establish your centerline use a hammer and punch to mark the hole once the holes are marked first drill a small pilot hole then drill a 1 in 1/4 inch hole for the cylinder now move to the interior side and measure 40 inches from the floor place the provided template into position by using the small cutout to match your indicated
