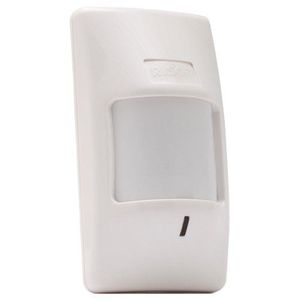

Risco ZoDIAC Quad PIR Motion Sensor, Pet Immune, 30 Ft. (RK410PT)

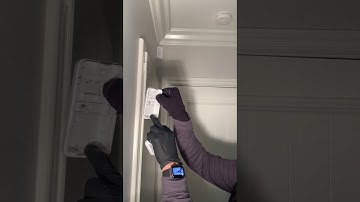

next we're going to install the motion detector first thing you're gonna do is you're gonna pop the cover off the very top and you're gonna back out there's a little set screw right in there this is going to allow the ocean' detector to come off of the mounting bracket once that set screw is blocked all the way out you'll see it release as you can see inside of the motion detector there are different configurations if you're going to mount it flat against the wall or if you're gonna corner mounted so there's little preset areas where you're gonna use the screws that were inside of the box so we're gonna go ahead and we're gonna mount this now in a corner mount first thing you're going to do is they're going to from the bottom you're going to mount it from the bottom and snap it up tighten the setscrew close the cover and now your motion detector is ready to be tested
