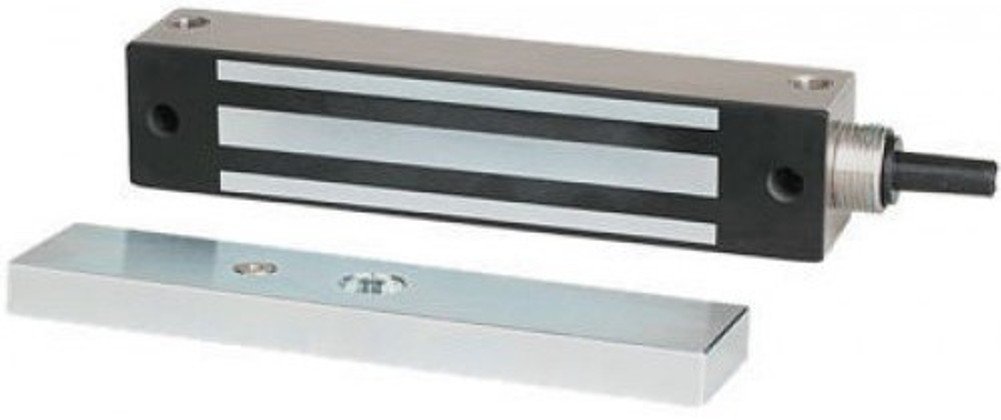

SECO-LARM E-946FC-600Q Electromagnetic Gate Lock, 600-lb Holding Force, Face or Surface Mount For Indoor and Outdoor Applications, Water Resistant and Vandal Resistant

• Face and side (surface) mounting
• For indoor & outdoor applications
• For sliding or swinging gates
• Water resistant and vandal resistant
• Maintenance-free, factory-sealed design
• Dual-threaded conduit fitting
• Attractive stainless-steel housing
• 3ft (91cm) Hookup cord
• Dual voltage: 12/24 VDC Operation
• No residual magnetism
• MOV Surge protection
• Fail-Safe operation - unlocks on power loss
• Complete mounting hardware included
• L and "Z" brackets available

• Holding Force: 600-lb (272kg)
• Operating Voltage: 12VDC or 24VDC ±10%
• Current Draw: 500mA@12VDC, 250mA@24VDC
• Operating Temperature: 14º~131º F (-10º~55º C)
• Electromagnet Dimensions: 8" x 1-11/16" x 1-9/16" (203 x 43 x 40 mm)
• Armature Dimensions: 7-1/4" x 1-5/8" x 9/16" (184 x 41 x 14 mm)
• Weight: 6-lb (2.7kg)
