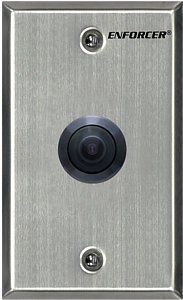

SECO-LARM EV-5105-N1SQ Vandal Resistant Indoor/Outdoor Wide Angle Wall-Plate Camera, 2.3mm Lens, 1/3" Interline color CCD, 700 TV lines/960H High resolution, Pickup Elements 976(H)x494(V)

• 2.3mm Lens
• 1/3" Interline color CCD
• 700 TV lines/960H High resolution
• Vandal resistant
• Weatherproof (IP67) indoor/outdoor use
• Fits in a single-gang plate or slimline plate
• Installs in a standard single-gang back box (not included)
• Adjustable mounting angle
• Programmable reversible image
• Includes: 1 Camera, 1 Single-gang plate and 1 Slimline plate

• Chip: 1/3" Interline color CCD
• Horiz. Resolution: 700 TV lines, 960H high resolution
• Pickup Elements: 976(H)x494(V)
• Minimum Illumination: 0.1 Lux
• Video Output: 1.0Vp-p composite output, 75Ω
• Lens: 2.3mm
• S/N Ratio: >52dB
• Operating Voltage: 12VDC ±10%
• Current Draw: 74mA
• Gamma Correction: 0.45
• Gain Control: Auto
• IP Rating: IP67
• Operating Temperature: 14º~122º F (-10º~+50º C)
• Dimensions: Camera- 1-1/8"x1-1/8"x1-1/4" (28x28x31 mm), Single-Gang- 2-3/4"x4-1/2" (70x114 mm), Slimline- 1-1/2"x4-1/2" (38x114 mm)
• Weight: 2.8-oz (80g) (Camera only)
