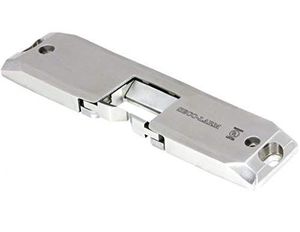

Seco-Larm SD-998C-NUAQ 1/2" Surface-Mount Electric Rim Strike, Works with Standard Rim-Type Exit Devices, 12/24 VDC Operating Voltage

The SECO-LARM SD-998C-NUAQ Surface-Mount Electric Rim Strike is designed for rim exit devices with a throw Pullman latchbolt. The strike features selectable fail-safe/fail-secure operation, 12/24 VDC operating voltage, horizontal adjustment, and a thick surface-mount metal housing which eliminates frame cutting when installing

• 12/24 VDC Operating voltage
• Horizontal adjustment
• Accommodates up to 3/4" Pullman latch
• Reversible non-handed design fits most door frames
• Surface-mount installation on metal or wooden door frames
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A, SD-962AR-36G
• Static strength: 1,500-lb
• Tested for 250,000 cycles (UL Tested)
• Low current draw: 540mA@12VDC, 270mA@ 24VDC
• Dynamic strength: 70 lb-ft
• Field-selectable for fail-safe or fail-secure operation
• Spacers included: 1/16", 2 x 1/8"

• Operating Voltage: 12/24 VDC
• Current Draw: 12VDC : 540mA, 24VDC : 270mA
• Static Strength: 1,500-lb
• Dynamic strength: 70 ft-lbs
• Endurance: 250,000 cycles (UL Tested)
• Operating Temperature: 14°~113° F
• Operating Humidity: 0~95%
• Dimensions: 8"x1.75"x0.5"
