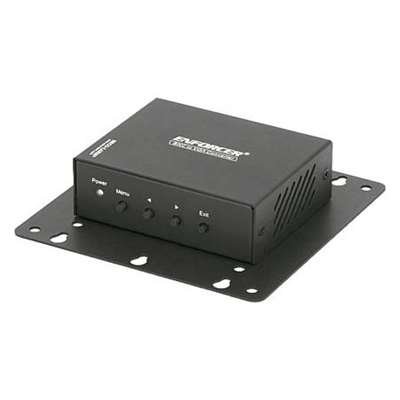

SECO-LARM VC-3BAQ BNC-to-VGA Converter, Up to 1280x1024 Resolution, Converts Almost Any VGA Monitor Into a Security Monitor, Dual Output for VGA and BNC, Automatically Detects NTSC/PAL

The BNC to VGA converter allows a display with a VGA input to display BNC video signals. Traditional CCTV monitors can now be replaced by any display unit with a VGA input, including most LCD monitors. The converter is compact and can be mounted nearly anywhere. For example, the included VESA bracket mount can be installed onto most VGA monitors with VESA mounting holes.

• Up to 1280x1024 resolution
• Converts almost any VGA monitor into a security monitor
• Dual output for VGA and BNC
• Compact, unit is perfect for plug and play installations
• Desktop, wall, or VESA mountable (VESA mount included)
• On screen display (OSD) for image adjustment
• Automatically detects NTSC/PAL
• Video input auto-configure
• Memory retains settings after power failure
• Gold-plated BNC connector for longer life
• Includes 5VDC power supply

• VESA mount: 75x75 mm, 100x100 mm
• Type: BNC to VGA
• Input Signal: Composite video 1Vp-p 75ohm BNC jack
• Output Signal: VGA: 0.7 Vp-p RGB, 15 pin female D-sub, Composite video 1Vp-p 75ohm BNC
• Maximum Resolution: Up to 1280x1024, NTSC: 720x480 PAL: 720x576
• Current Draw: 800mA@5VDC
• Power supply: 1A@5VDC, 2.5mm
• Dimensions: 3-3/8"x3-1/4"x1-1/16" (85x83x27 mm)
• Weight: 7.2-oz (205g)
