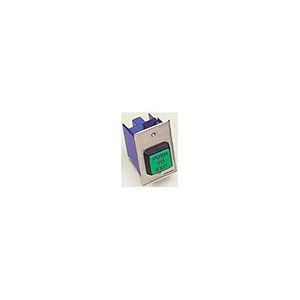

SECURITRON MAGNALOCK CORP PUSH BUTTON EEB2

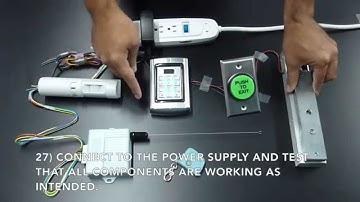

wiring instructions for mag lock kit first you need to cut off the end of the transformer on the transformer you will then identify the positive and negative wires just to note that the positive side will have dashes or a solid white line writing along that side of the wire second on the receiver cable harness you're going to need identify four control wires the red wire which will be your positive the black wire which will be your negative the yellow wire which will be your common and the blue wire which is your normally closed contact then connect the positive from your receiver to the positive from the transformer connect the negative from the receiver to the negative from the transformer also connect the common from the receiver to the negative wires from the transformer you should now have the normally closed wire from the receiver free now connect the harness to the receiver now y
