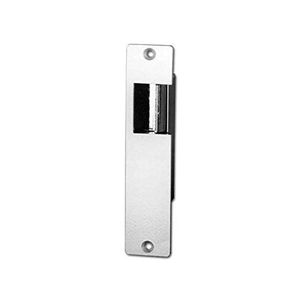

MIRCOM TECHNOLOGIES M10 DOOR STRIKE 8-12VAC

okay so here is the close-up of this electric strike system you can see we've got the power supply over here in that power supply is then routed to our control board right here okay so here's a little view of the control board and this control board has two contacts that go out to the electric strengths right here the electric strike being a lot and then oh so this control board has two electric strike contacts going out to the actual electric strike itself so this controller controls the electric strike right here and then we also have two contacts here and these contacts are going out to the push button okay and the push button is just wired you can see the two wires here right on the back not very hard to wire up and then you can see for the electric strike we just got the two wires right here on the top of electric strike that wire in to the control board so very very simple wiring
