Parameters:
Power Output: AC/DC 12-30V(-/+10%)
Type of Ray: Infrared light modulation
Photo Source: Infrared 940mm/37ft
Light Beam: 8 channel transmit, 8 channel receive
Quiescent Current: 35mA
Working Current: 73mA
Self-learn Time: 15s
Operating Display: Standby---blue LED; Detecting---red LED
Temperature Range: -40℃ ~ 60℃ / -40℉~140℉
Maximum Installation: 2500mm
Maximum Detection Area: 2000(W)x500(D) mm / 78.7(W)x19.7(D) inch
Hold-up Time: 500ms
Response Time: ≤100ms
Dimension of Exposed: 200(L)x49(W)x32(H)mm / 7.9(L)x1.9(W)x1.3(H) inch
Dimension of Conceal: 152(L)x38(W)x25(H)mm / 6.0(L)x1.5(W)x1.0(H) inch
Package weight: 310g / 0.68lb

Package:

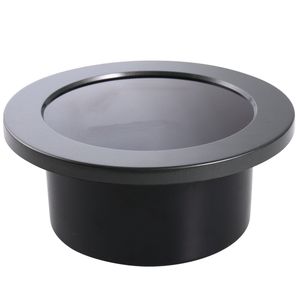

1 x Ceiling mounted presence detector
