UTC Fire Security 6009400IMAGKIT Image Sensor Daughterboard

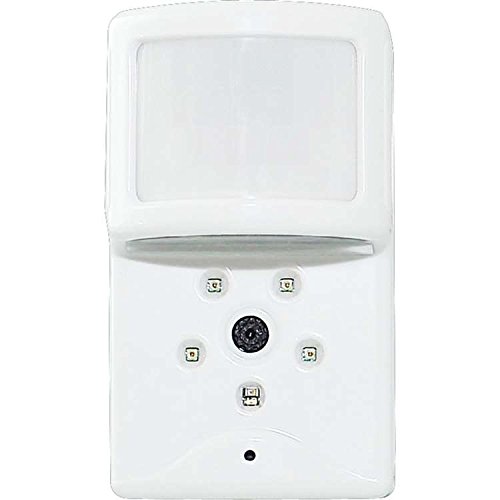

today we're going to show you how to properly install the image sensor card for your IQ panel 2 to adding this card allows you to pair up to five alarm.com image sensors with the IQ panel 2 the first thing we want to do is power down the panel from the drop down menu select settings advanced settings enter your installer code and then press power down open the panel's by pushing up on the two tabs really seeing a face on the back plate then hinge it upwards to disconnect it from the top you have the provided hanging straps to secure the panel while installing the card so it does not fall or hangs from the power wire the image sensor card will be installed in this slot first locate the antenna tape to the foam block then remove the tape to release the cable next line up to a pin connector and press the daughter card into place by pushing it down all the way locks it into place using the
