Description
External Sensor Technical Parameter:
Sensor Weight:<10g
Pressure Range:0bar-9.0bar/0Psi-131Psi
Battery Model:CR1632
Battery Lifetime:>3 years
Static Current:<0.7uA
Operating Current:<12mA
Operating Temperature:-20℃--+110℃
Pressure Error:±0.1Bar/±1Psi
Temperature Reading Accuracy:±2℃
Operating Humidity:5-98%
Simple installation of external sensor:
1.Backout dustproof cap of tire valve.
2.Screw-in the hexagonal nut.
3.Screw-in the sensor in proper tire according to the mark in the cover.
4.Tighten the sensor by nut wrench in reverse direction.
5.Check if it is leaking with soapsuds.
*Display and 4 sensors are already learned with each other before leaving the factory,no need to do code learning again after installation.
External sensor battery replacement:
1.Loosen the hexagonal nut.
2.Backout the sensor.
3.Take out the anti-dismantle locking plate.
4.Backout the cover with uncap wrench.
5.Replace the new button battery.
6.Assemble the sensor in reverse operation.
Display installation:
1.Place the display on dash board or inner side of the wind shield glass.
Note:Display should be away from metals,such like DVR,DVD ect as much as possible.
2.Press any button to turn on the display.If the display dosen't detect any movement,it will hibernate after 1 minute.It will automatically turn on when it detects movements.(The display is no data when first time turn on.It will automatically refresh data after installation of sensors)
Package Includes:
1 x Monitor
4 x Sensor(NOTE:External sensor/Internal sensor:the one selected by the user shall prevail.)
1 x spanner
4 x Hexagonal nut
1 x English instruction manual
Sensor Weight:<10g
Pressure Range:0bar-9.0bar/0Psi-131Psi
Battery Model:CR1632
Battery Lifetime:>3 years
Static Current:<0.7uA
Operating Current:<12mA
Operating Temperature:-20℃--+110℃
Pressure Error:±0.1Bar/±1Psi
Temperature Reading Accuracy:±2℃
Operating Humidity:5-98%
Simple installation of external sensor:
1.Backout dustproof cap of tire valve.
2.Screw-in the hexagonal nut.
3.Screw-in the sensor in proper tire according to the mark in the cover.
4.Tighten the sensor by nut wrench in reverse direction.
5.Check if it is leaking with soapsuds.
*Display and 4 sensors are already learned with each other before leaving the factory,no need to do code learning again after installation.
External sensor battery replacement:
1.Loosen the hexagonal nut.
2.Backout the sensor.
3.Take out the anti-dismantle locking plate.
4.Backout the cover with uncap wrench.
5.Replace the new button battery.
6.Assemble the sensor in reverse operation.
Display installation:
1.Place the display on dash board or inner side of the wind shield glass.
Note:Display should be away from metals,such like DVR,DVD ect as much as possible.
2.Press any button to turn on the display.If the display dosen't detect any movement,it will hibernate after 1 minute.It will automatically turn on when it detects movements.(The display is no data when first time turn on.It will automatically refresh data after installation of sensors)
Package Includes:
1 x Monitor
4 x Sensor(NOTE:External sensor/Internal sensor:the one selected by the user shall prevail.)
1 x spanner
4 x Hexagonal nut
1 x English instruction manual

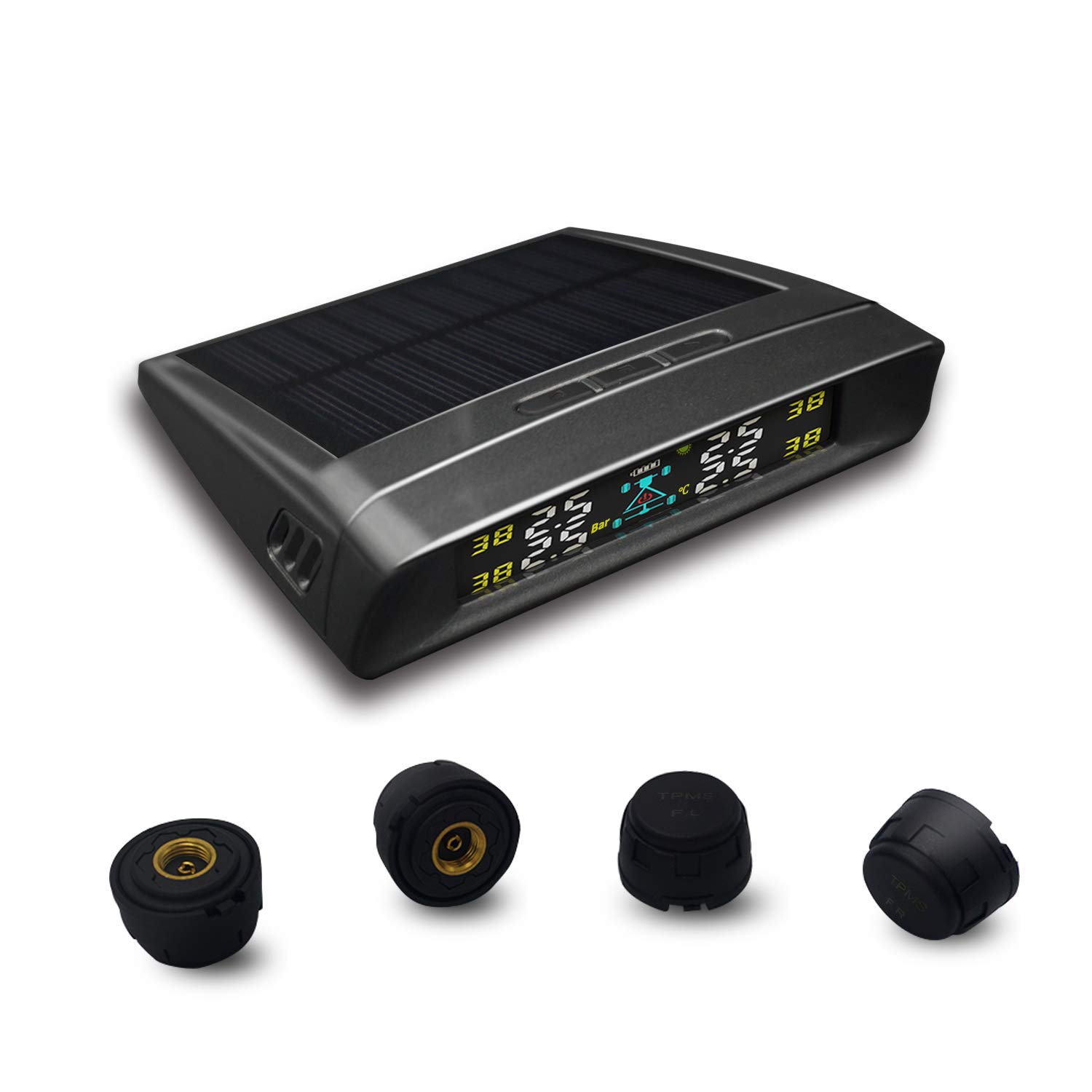

VICTOR TPMS Tire Pressure Monitoring System Solar Power Smart Wireless Universal Real-time Monitoring Automatic Alarm System Pearl Shell LCD Display with 4 External Sensors(0bar-9bar/0Psi-131Psi) ...
