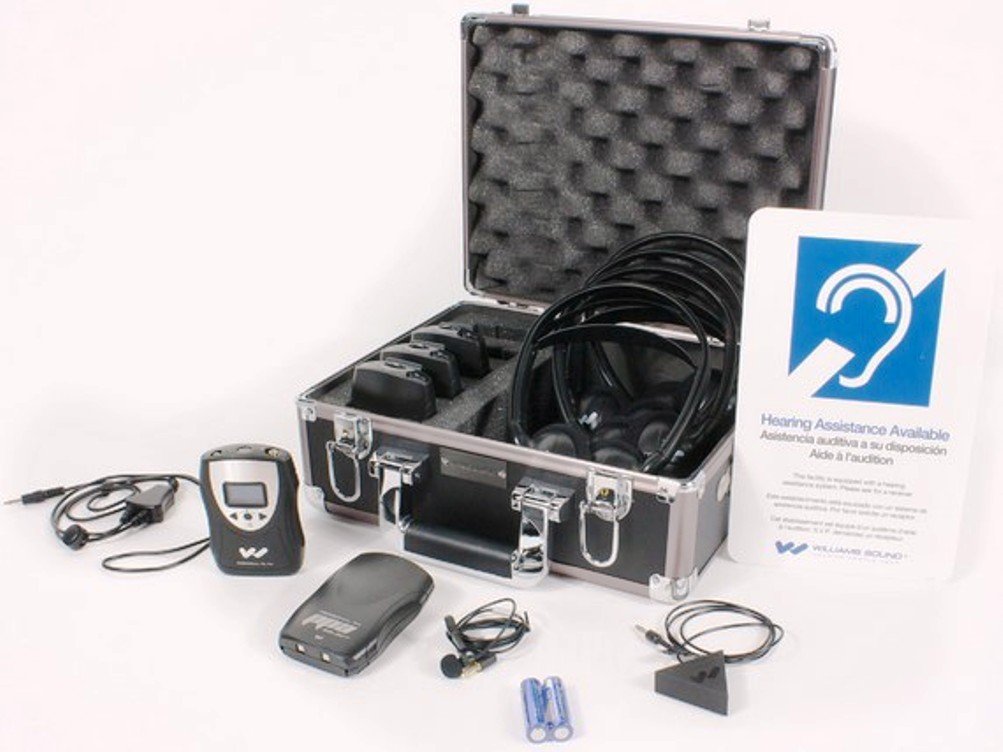

This kit provides everything you need to accommodate individuals for hearing accessibility in a small-group settings such as libraries, conference rooms and information desks. This portable, easy-to-use FM system operates at 72-76 MHz on one of 17 selectable channels. This single kit satisfies ADA requirements for multiple-room facilities.

• Simple set-up and operation
• 150' operating range
• 100 hours receiver battery life
• Meets new 2010 ADA accessibility guidelines
• Made in USA

• PPA R37 Receiver
• Intermediate Freq.: 75 kHz
• AFC Range: ± 120 kHz
• Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
• Input Overload: 100 mV
• Frequency Response: 200 - 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Receive Antenna: Integral with earphone/headphone cord
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector: 3.5 mm stereo/mono phone jack
• PPA T46 Transmitter
• Stability: ± .005%, frequency synthesized, crystal reference, PLL
• RF Output: 80 mV/m at 3m
• Frequency Response: 180 Hz to 13 kHz, ± 3dB at 1% max. THD
• Signal-to-Noise Ratio: 65dB
• Transmit Antenna: Integral with microphone cord
• Microphone: Electret type, 3.5 mm mono plug
• Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
• Aux Input: 2.5 mm stereo jack, adjustable gain with 60dB range
• Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
