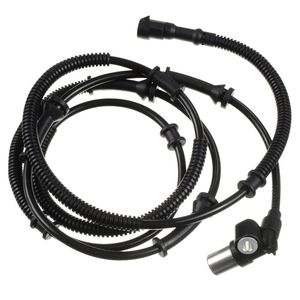

Holstein Parts 2ABS2123 ABS Speed Sensor

[Music] the abs sensor is also called the wheel speed sensor or anti-lock brake sensor the abs sensor usually consists of a toothed ring and a magnet enclosed within a coil the contact between the ring and the magnet induces an electric field due to which a signal is generated this signal is sent to the abs controller the two-third ring is also called a tone ring and is attached to a part of the vehicle that is rotating at the same speed as the road wheel such as the wheel hub brake disc cv joint or the drive shaft wheel speed sensors are installed directly above or next to the pulse wheel older configurations of abs had the sensors located outside the wheel hub in parts such as the steering knuckle and differential housing the abs sensors and newer systems are fitted in the wheel hub assembly itself depending on the integration of sensor functions in hub-bearing units the sensor can be
