Product Reference: CCTVA-PCT-IV7A

Specifications:
Best system equipment for installing and inspecting engineering
Classic series, highly equipped, the most cost effective choice
Palm size, easy to carry and operate
User can check the details of camera video during the process of installation
12V 1A output function can be helpful when no external power supply for the camera
Video test automatically identification with access AHD video signal
Automatic identification NTSC/PAL format image signal
Network cable test
RS485 Interface
Built-in 3.7V 2600mAh Lithium battery
Through DC power out enables user to inspect; correct camera or confirm installation. It's convenient for video equipment that helps communication and discussion with clients during installation process
Please notice this tester do not supports TVI or CVI Camera

Technical Information:

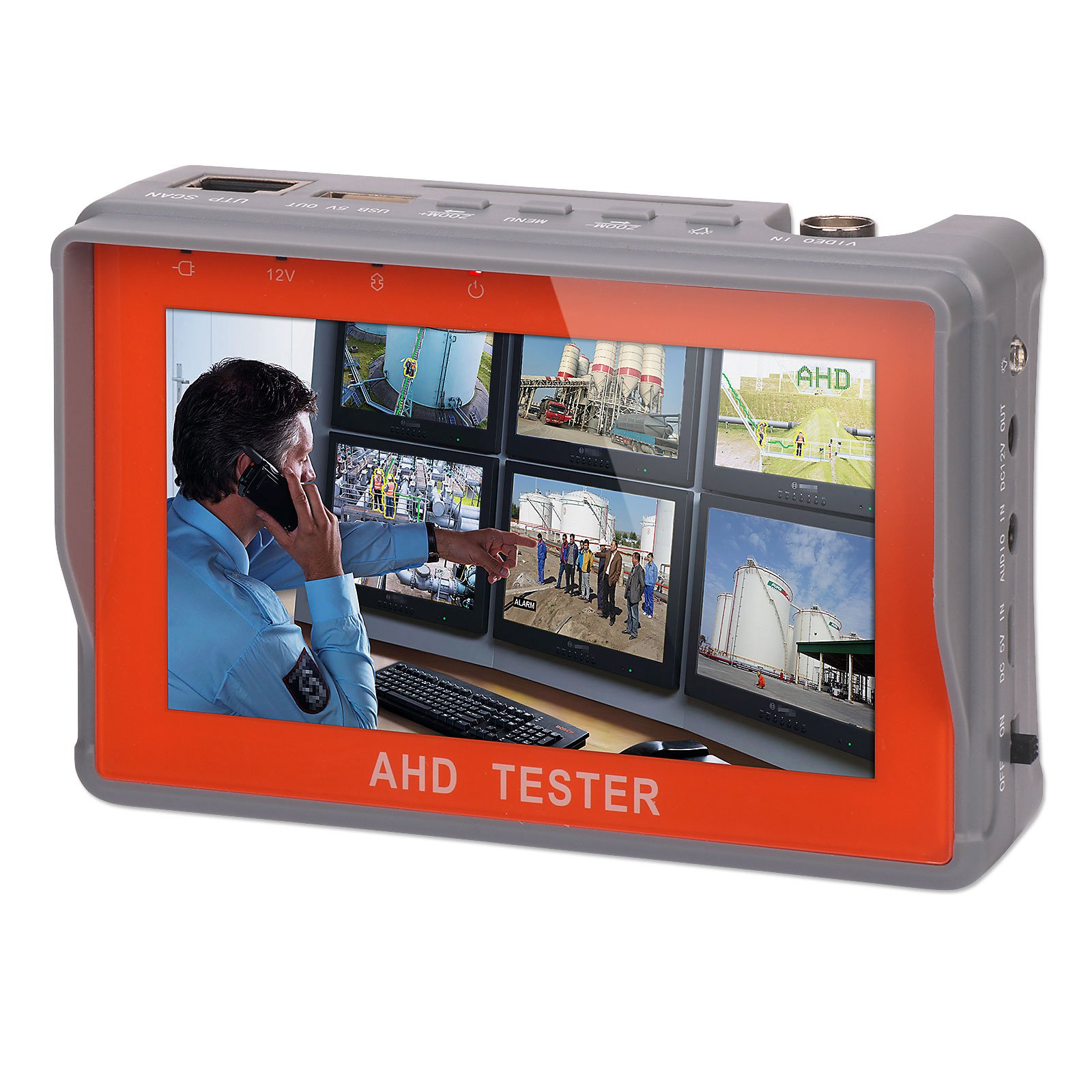

Product Type: Portable CCTV Camera Monitor Tester
Display: 4.3 inch Color LCD
Image Resolution: 480*272
Support: Analog CCTV Camera, AHD Camera
Video In: 1 channel BNC input
Audio Test: Support, input audio signal and played on the internal speaker
PTZ Protocol: Compatible with PELCO-D/P
System Format: PAL / NTSC Automatically recognize
Language: English / Russian / Deutsch / Espanol / Portugal / Italian
External Power: DC 5V 1.0A Adapter
Charge time: 4 hours
Battery working time: 7 hours
Humidity: 30% ~ 90% Rh
Working Temperature: -20°C ~ 70°C
Dimension: approx. 120 x 80 x 40 mm / 4.7" x 3.1" x 1.6" inch
Weight: 200g

Package includes:
1 x Portable CCTV Camera Monitor Tester
1 x Wrist Strap
1 x BNC Video Cable
1 x Micro USB Data Cable
1 x User Manual (English)
