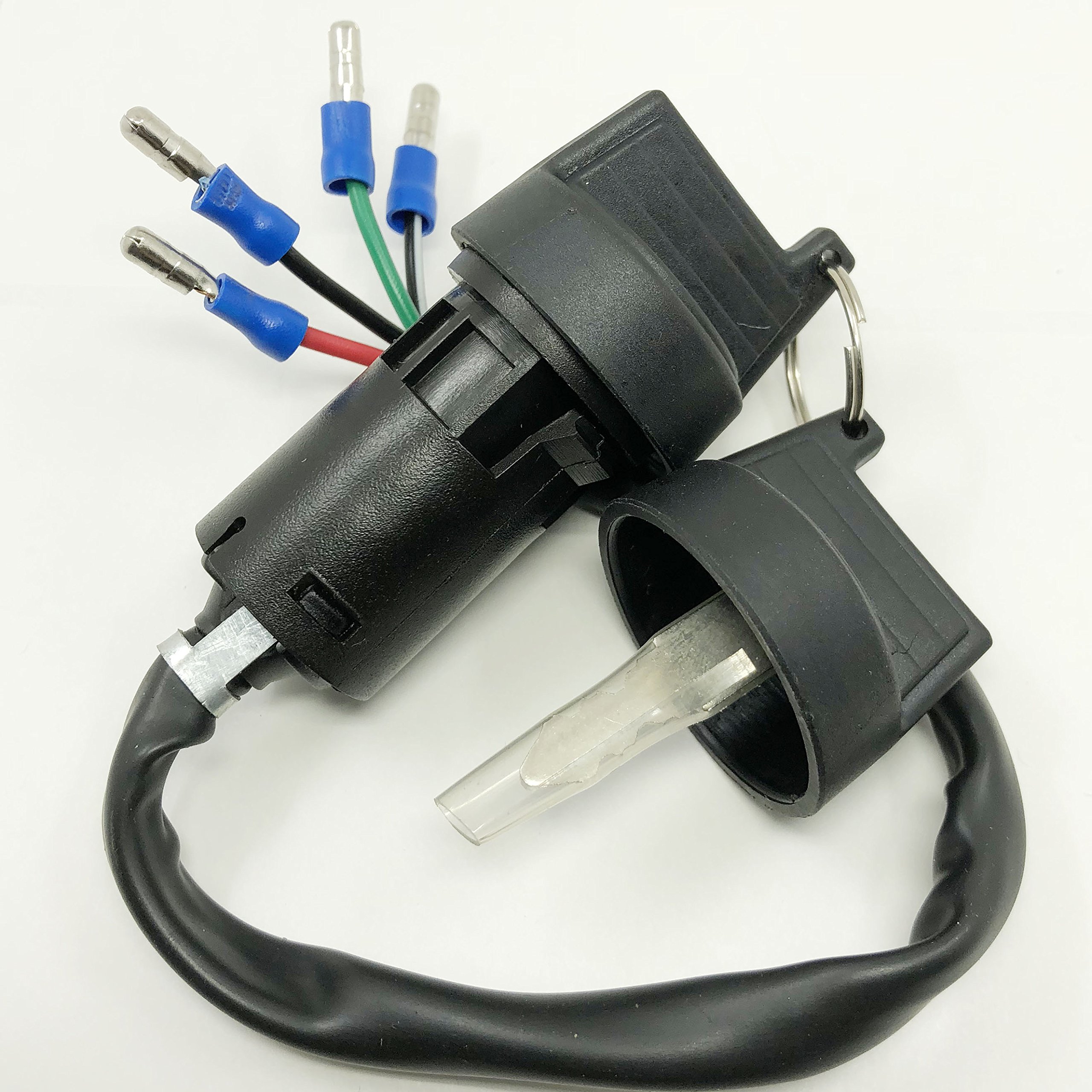

High Performance Ignition Key Switch for Honda CRF230F 2003-2007

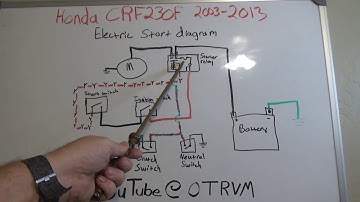

[Music] everybody why here at OPM so today we're going to be discussing a wire diagram electrical troubleshooting of the start circuit for a CRF 230 F it's the Honda and it's going to be for the years 2003 2013 one of your viewers asked about having a problem with the start circuit so let's get into the diagram and I can explain it to you and hopefully it will make sense won't they help you troubleshoot all right let's go everyone here is the diagram for the Honda CRF to 30th 2003 2013 for the actual start alright so this is going to be the starter motor right here starter relay the battery I'm neutral switch a clutch switch the ignition switch and then the start button itself so how the system works for this particular model is it is the starter relay is looking for a ground from either the neutral switch or the clutch switch and it's looking for power from the start switch so let's ju
