Description
Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 270° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x DS3235SSG Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
Other options:
✔25KG Coreless servo 270°,please search ASIN: B07SSNJ6Y5
✔20KG Control Angle 270°,please search ASIN: B076CNKQX4
✔25KG Control Angle 180°,please search ASIN: B07KTSLGJ7
✔20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
✔60kg Control Angle 270°,Please search ASIN: B07KTSCN4J
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 270° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x DS3235SSG Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
Other options:
✔25KG Coreless servo 270°,please search ASIN: B07SSNJ6Y5
✔20KG Control Angle 270°,please search ASIN: B076CNKQX4
✔25KG Control Angle 180°,please search ASIN: B07KTSLGJ7
✔20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
✔60kg Control Angle 270°,Please search ASIN: B07KTSCN4J

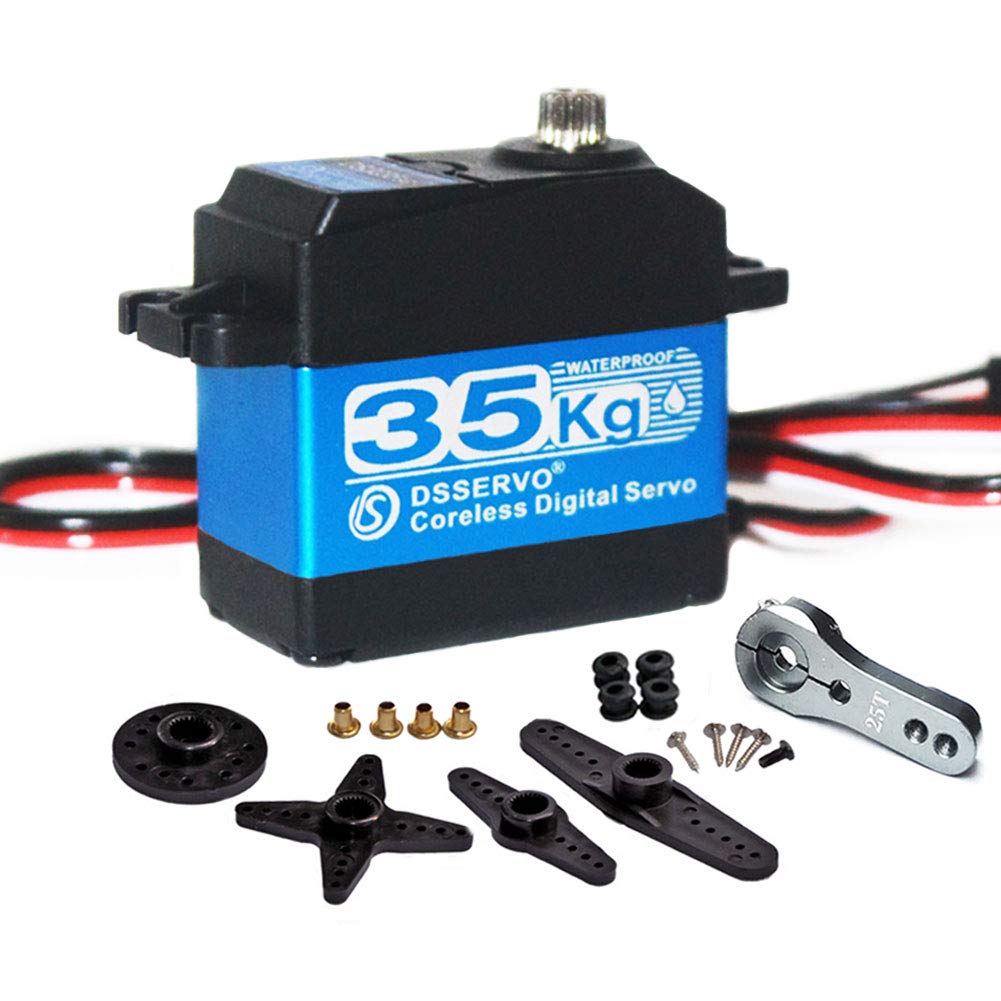

ANNIMOS 35KG Coreless Digital Servo Motor HV 7.4V Stainless Steel Gear High Torque Waterproof Standard Baja Servos for Robotic DIY RC Cars - 270 Degrees
Price is below average
Current Price
$38.99
Average
$44.99
Min Price
$36.99
Max Price
$100
Price dynamics
13%
Description
Electrical Specification:
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 270° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x DS3235SSG Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
Other options:
✔25KG Coreless servo 270°,please search ASIN: B07SSNJ6Y5
✔20KG Control Angle 270°,please search ASIN: B076CNKQX4
✔25KG Control Angle 180°,please search ASIN: B07KTSLGJ7
✔20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
✔60kg Control Angle 270°,Please search ASIN: B07KTSCN4J
Operating voltage range: 5-7.4V
Operating speed ( 5.0V ): 0.1 3sec/60 degree
Operating speed ( 6.0V ): 0.12 sec/60 degree
Operating speed ( 7.4V ): 0.11 sec/60 degree
Stall torque ( 5.0V ): 29kg/cm
Stall torque ( 6.0V ): 32kg/cm
Stall torque ( 7.4V ): 35kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 270° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 373
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)
Waterproof performance: IP66
Package:
1 x DS3235SSG Coreless Servo
1 x 25T Adjustable metal servo arm
One set of accessories
Other options:
✔25KG Coreless servo 270°,please search ASIN: B07SSNJ6Y5
✔20KG Control Angle 270°,please search ASIN: B076CNKQX4
✔25KG Control Angle 180°,please search ASIN: B07KTSLGJ7
✔20kg Control Angle 270°(PRO Version), ASIN: B07KTSVSSJ
✔60kg Control Angle 270°,Please search ASIN: B07KTSCN4J
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
