Description
Dimensions(mm): 40.3x20.2x45.0
Weight(g): 79.0
Speed(@4.8V sec/60): .20
Torque(@4.8V oz-in): 416.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 499.9
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.8-6.0
Running current (at no load): 180 mA @ 4.8V
Running current (at no load): 250 mA @ 6.0V
Stall current (at locked): 4200 mA @ 4.8V
Stall current (at locked): 5300 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 200 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3~5 μsec
Rotating direction: Counterclockwise (when 1000→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2200 μsec)
Weight(g): 79.0
Speed(@4.8V sec/60): .20
Torque(@4.8V oz-in): 416.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 499.9
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.8-6.0
Running current (at no load): 180 mA @ 4.8V
Running current (at no load): 250 mA @ 6.0V
Stall current (at locked): 4200 mA @ 4.8V
Stall current (at locked): 5300 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 200 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3~5 μsec
Rotating direction: Counterclockwise (when 1000→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2200 μsec)

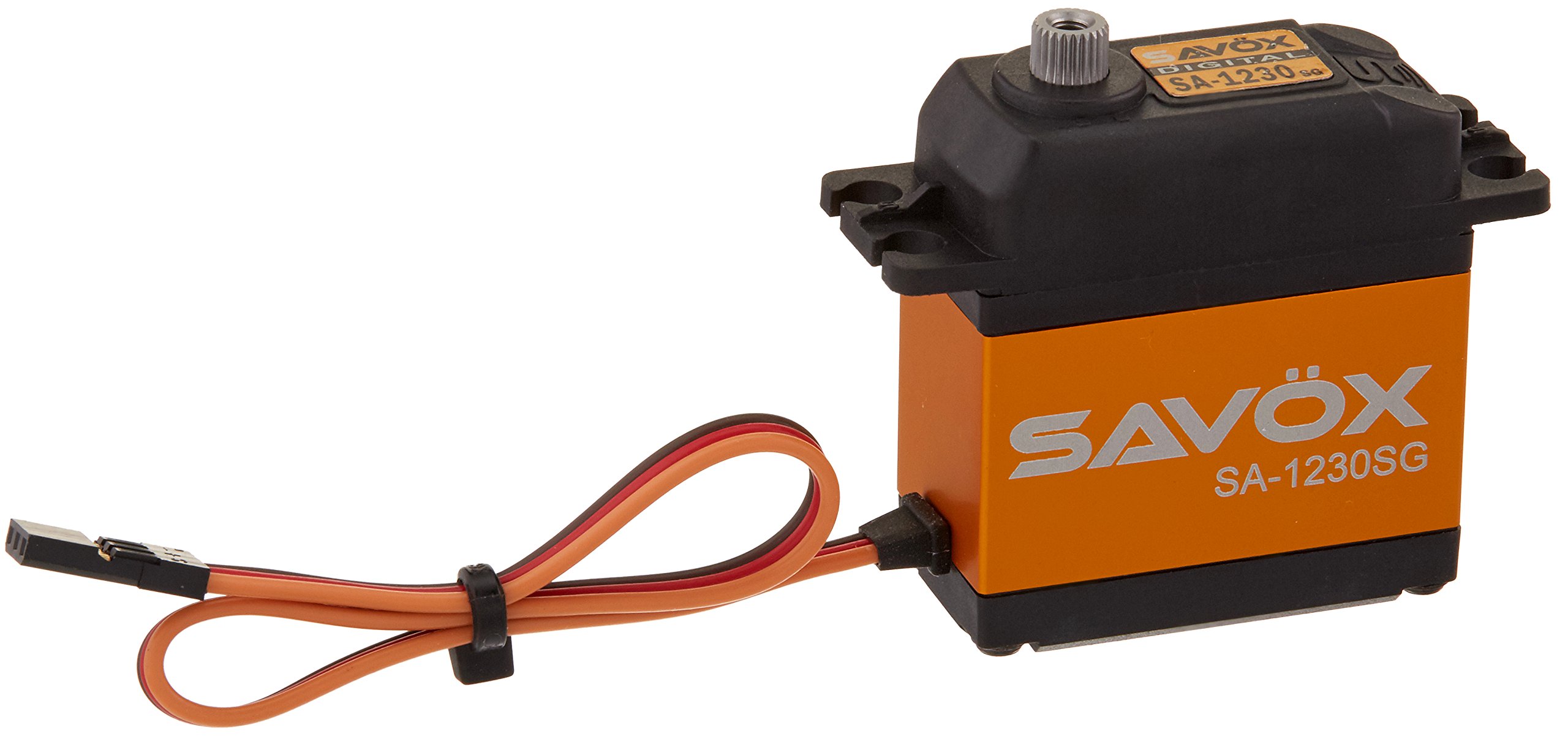

Savox SA1230SG Monster Torque Coreless Steel Gear Digital Servo
Current Price
$74.07
Average
$70.41
Min Price
$51.17
Max Price
$77.43
Price dynamics
5%
Description
Dimensions(mm): 40.3x20.2x45.0
Weight(g): 79.0
Speed(@4.8V sec/60): .20
Torque(@4.8V oz-in): 416.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 499.9
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.8-6.0
Running current (at no load): 180 mA @ 4.8V
Running current (at no load): 250 mA @ 6.0V
Stall current (at locked): 4200 mA @ 4.8V
Stall current (at locked): 5300 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 200 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3~5 μsec
Rotating direction: Counterclockwise (when 1000→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2200 μsec)
Weight(g): 79.0
Speed(@4.8V sec/60): .20
Torque(@4.8V oz-in): 416.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 499.9
Gear: Unique Steel
Bearing: 2BB
Case: Full Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.8-6.0
Running current (at no load): 180 mA @ 4.8V
Running current (at no load): 250 mA @ 6.0V
Stall current (at locked): 4200 mA @ 4.8V
Stall current (at locked): 5300 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 200 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3~5 μsec
Rotating direction: Counterclockwise (when 1000→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2200 μsec)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
