Description

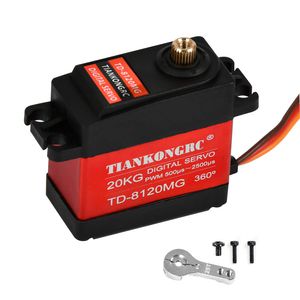

YANSHON 20KG Digital Servo High Torque Full Metal Gear Waterproof for RC Model DIY, TD-8120MG, Control Angle 360°
ABOUT SERVO MOTOR:
The brushless servo steering gear has three wires: the red wire is connected to the positive electrode, the brown wire is connected to the negative electrode, and the orange wire is the signal wire
Products Specifcation:
Products Name:TD-8120MG Digital
1. Apply Environmental Conditon
1.1 Storage Temperature Range: -30°C~80°C
1.2 Operating Temperature Range:-25°C~70°C
2. Standard Test Environment
2.1 Temperature Range: -25°C~70°C
2.2 Humidity Range: 65%±10%
3. Mechanical Specification
3.1 Servo size: 40.0*20.5*40.5mm
3.2 Weight: 56g±5%
3.3 Gear type: 5 Metal
3.4 Limit angle: 360°
3.5 Bearing: 2BB
3.6 Horn gear spline: 25T Diameter:5.9mm
3.7 Horn type: Plastic, POM
3.8 Servo Case: Engineering plastics(PBT)+Aluminum alloy
3.9 Connector wire: 320mm±5mm
3.10 Motor: Carbon brush motor
3.11 Splash water resistance: No
4. Electrical Specification
4.1 Operat voltage 4.8V/7.2V
4.2 Idle current: mA/mA
4.3 No load speed: 0.18sec/60°/0.14sec/60°
4.4 Runnig current: 210mA/260mA
4.5 Peak stall torque: 20.5kg.cm/22.8kg.cm
4.6 Stall current: 2100mA±10%/2700mA±10%
4.7 Working voltage range: 4.8-7.2V
5.Control Specification
5.1Command signal: Pulse width modification
5.2Amplifier type: Digital controller
5.3Pulse width range: 500~2500usec
5.4Neutral position: 1500usec
5.5Running degree: 180°±3°(when 500~2500usec)
5.6Dead band width: 5 usec
5.7Rotating direction: Counterclockwise (when1000~2000usec)
ABOUT SERVO MOTOR:
The brushless servo steering gear has three wires: the red wire is connected to the positive electrode, the brown wire is connected to the negative electrode, and the orange wire is the signal wire
Products Specifcation:
Products Name:TD-8120MG Digital
1. Apply Environmental Conditon
1.1 Storage Temperature Range: -30°C~80°C
1.2 Operating Temperature Range:-25°C~70°C
2. Standard Test Environment
2.1 Temperature Range: -25°C~70°C
2.2 Humidity Range: 65%±10%
3. Mechanical Specification
3.1 Servo size: 40.0*20.5*40.5mm
3.2 Weight: 56g±5%
3.3 Gear type: 5 Metal
3.4 Limit angle: 360°
3.5 Bearing: 2BB
3.6 Horn gear spline: 25T Diameter:5.9mm
3.7 Horn type: Plastic, POM
3.8 Servo Case: Engineering plastics(PBT)+Aluminum alloy
3.9 Connector wire: 320mm±5mm
3.10 Motor: Carbon brush motor
3.11 Splash water resistance: No
4. Electrical Specification
4.1 Operat voltage 4.8V/7.2V
4.2 Idle current: mA/mA
4.3 No load speed: 0.18sec/60°/0.14sec/60°
4.4 Runnig current: 210mA/260mA
4.5 Peak stall torque: 20.5kg.cm/22.8kg.cm
4.6 Stall current: 2100mA±10%/2700mA±10%
4.7 Working voltage range: 4.8-7.2V
5.Control Specification
5.1Command signal: Pulse width modification
5.2Amplifier type: Digital controller
5.3Pulse width range: 500~2500usec
5.4Neutral position: 1500usec
5.5Running degree: 180°±3°(when 500~2500usec)
5.6Dead band width: 5 usec
5.7Rotating direction: Counterclockwise (when1000~2000usec)
