Description
Dimensions(mm): 40.3x20.2x37.2
Weight(g):52.4
Speed(@4.8V sec/60): . 18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): . 15
Torque(@6.0V oz-in): 277.7
Gear: Titanium and Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.5-6.0
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Trave: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when 1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2100 μsec)
Weight(g):52.4
Speed(@4.8V sec/60): . 18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): . 15
Torque(@6.0V oz-in): 277.7
Gear: Titanium and Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.5-6.0
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Trave: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when 1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2100 μsec)

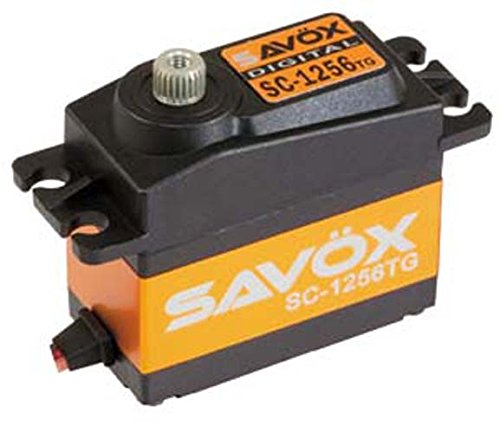

Savox SC-1256TG High Torque Titanium Gear Standard Digital Servo
Current Price
$72.51
Average
$69.41
Min Price
$62.19
Max Price
$76.98
Price dynamics
4%
Description
Dimensions(mm): 40.3x20.2x37.2
Weight(g):52.4
Speed(@4.8V sec/60): . 18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): . 15
Torque(@6.0V oz-in): 277.7
Gear: Titanium and Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.5-6.0
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Trave: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when 1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2100 μsec)
Weight(g):52.4
Speed(@4.8V sec/60): . 18
Torque(@4.8V oz-in): 222.2
Speed(@6.0V sec/60): . 15
Torque(@6.0V oz-in): 277.7
Gear: Titanium and Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.5-6.0
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Trave: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when 1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2100 μsec)
Price will be lower
in next 2 weeks
in next 2 weeks
According to the data, price will be lower in next two weeks, so not waste your money and track better price!
