MPU-6050 GY-521 Module 3 Axis Gyroscope+3 Axis Accelerometer Module for Arduino, Raspberry Pi
Specifications:
Pin pitch: 2.54mm
Use the chip: MPU-6050
Module Weight: about 3g
Acceleration range: ± 2 ± 4 ± 8 ± 16g.
Gyroscope range: + 250 500 1000 2000 ° / s
Module Size: 20mm*15mm*1.2mm(max).
Power supply: 3-5v (internal low dropout regulator)
Chip built-in 16bit AD converter, 16-bit data output
Communication modes: standard IIC communications protocol
Immersion Gold PCB machine welding process to ensure quality
Description:
The MPU-6050 Module combines a 3-Axis Gyroscope and a 3-Axis Accelerometer allowing measurements of both independently, however they both based around the same axes which eliminats the problems of cross-axis errors when using separate devices.
The MPU-6050 sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is very accurate, since it contains 16-bits analog to digital conversion hardware for each channel. Therefor it captures the x, y, and z channel at the same time.

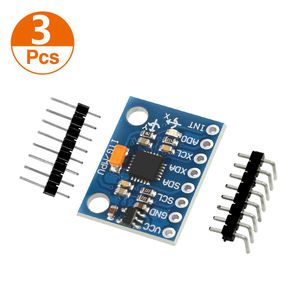

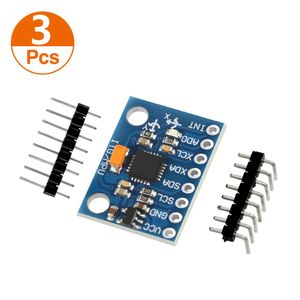

Package including:
3 x straight pins
3 x 90-degree pins
3 x MPU 6050 module
A useful link for Introduction to MPU-6050:
playground.arduino.cc/Main/MPU-6050
