Description
Specification:
Model: LC25A01
Weight: 28g/1oz
Working voltage: DC 12-15V(AC 9-12V)
Standby current 10MA
Working current 40MA
Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Size: 54×27×19mm/2.1×1.1×0.7inch
Application:
Home water tower automatic water supply system.
Aquarium fish tank water changer system.
Conductive liquid automatic control.
Automatic feeding system for poultry and livestock.
Farm automatic water supply system.
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control.
Interface description:
HIGH : Upper limit probe
OUT : Output probe
LOW : Lower limit probe
IN+ : Power terminal 1 (regardless of positive and negative)
IN- : Power terminal 2 (regardless of positive and negative)
NC: Relay normally closed contact
COM: Relay common contact
NO: Relay normally open contact
Package List: 1 × Level Controller Module
Note:
1. Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires
2. For safety, use an AC/DC power supply with good isolation.
Model: LC25A01
Weight: 28g/1oz
Working voltage: DC 12-15V(AC 9-12V)
Standby current 10MA
Working current 40MA
Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Size: 54×27×19mm/2.1×1.1×0.7inch
Application:
Home water tower automatic water supply system.
Aquarium fish tank water changer system.
Conductive liquid automatic control.
Automatic feeding system for poultry and livestock.
Farm automatic water supply system.
And other occasions that require automatic water supply and water exchange.
Solenoid valve water pump motor automatic control.
Interface description:
HIGH : Upper limit probe
OUT : Output probe
LOW : Lower limit probe
IN+ : Power terminal 1 (regardless of positive and negative)
IN- : Power terminal 2 (regardless of positive and negative)
NC: Relay normally closed contact
COM: Relay common contact
NO: Relay normally open contact
Package List: 1 × Level Controller Module
Note:
1. Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires
2. For safety, use an AC/DC power supply with good isolation.

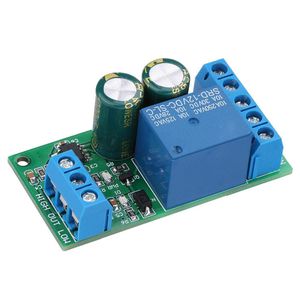

Water Level Controller Module DC 12-15V(AC 9-12V) Automatic Liquid Control Switch Module for Fish Tank Aquarium
