Description

Description:
The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module.

The VL53L0 uses ST's Flight Sense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained radar system.

The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use.

PIN Description:
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level.
GND The ground (0 V) connection for your power supply. Your I2C control source must also share a common ground with this board.
SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.

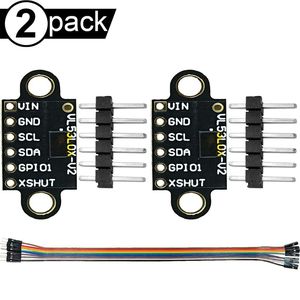

Package included:
2 x VL53L0X Ranging Sensor Module
1 x 12Pin Dupont Cable Female to Male
1 x 12Pin

DAOKI 2Pcs VL53L0X Ranging Sensor Time-of-Flight Laser Flight Distance Measurement Sensor Module Breakout 940nm GY-VL53L0XV2 I2C IIC 3.3V/5V

Price is below average

Current Price

$13.49

Average

$13.89

Min Price

$13.49

Max Price

$14.29

Price dynamics

3%

Description

Description:
The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module.

The VL53L0 uses ST's Flight Sense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained radar system.

The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use.

PIN Description:
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)
VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level.
GND The ground (0 V) connection for your power supply. Your I2C control source must also share a common ground with this board.
SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V
SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V
XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.

Package included:
2 x VL53L0X Ranging Sensor Module
1 x 12Pin Dupont Cable Female to Male
1 x 12Pin

According to the data, price will be lower in next two weeks, so not waste your money and track better price!
