Package:

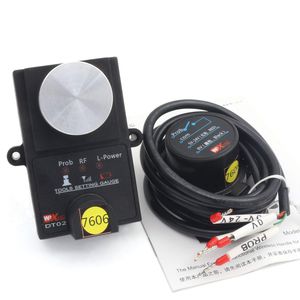

1 x DT02 Wireless Tool Setting Gauge

1 x Receiver

Item Description:

Applicable to Mach2,Mach3, Ncstudio, UcStudio,SINUMERIK (SISMENS) ,MITSUBISHI,Weihong system, HNC,Siemens, Japan Mitsubishi, Fanuc, Taiwan Baoyuan, New Generation, Huazhong CNC and other CNC machining centers and work UcStudiowith many CNC systems

1. The receiver

Working voltage: 5~24V DC;Rated current<20MA;Wireless distance: 20 meter;Cable: 1.5 meter

Internal relay output: Support 250V/50mA load; normally open; Knife trigger, Relay is closed.

2. The tool Setting Gauge

Working voltage: 2.4V~3.6V DC (use 2  AAA batteries);Working current: Rated current<20uA;Wireless distance: 20 meter;Probe precision: 0.01 mm

Prob: Output of internal relay in the receiver. When the trigger is received, the receiver turned on the internal relay immediately, then Probe and COM link together.

COM: Output of internal relay in the receiver. When the trigger is received, the receiver turned on the internal relay immediately, then Probe and COM link together.

Troubleshooting instructions:

1. Press the trigger transmitter, the probe led light and RF led out.

Reason:  Check the receiver power, make sure that the receive work led flash.

2. Press the trigger transmitter, the probe led out, RF led out and low-power led out.

Reason: Check whether the battery is installed on the gauge; Check that the batteries are installed correctly negative; Check whether the battery has power.

3. Press the trigger transmitter, the probe led out, the RF led out and the low-power led light.

Reason: Exchange the batteries of the device.

Note: Low power warning:please exchange the batteries when low power led light.
