CNC Router 6040 4 Axis CNC Router Machine 600x400mm Cnc Router Kit 1000W MACH3 Control Large 3D Engraving Machine
Introduction:
This engraving milling machine is equipped with 4 rotating axis, which can realize plane engraving, and as its rotating original, the ball screws have the feature of high precision, low noise and high efficiency..
Technical Parameters:
Voltage: 110V
Engraving Area: 400x580x75mm(15.7"x22.8"x2.9")
Max.workpiece dimension 750mm X 480mm <100mm
Work table dimension 750mm X 480mm X 15mm
Frame Material: 6061 Aluminium Alloy + 6063 Industry Aluminium
Drive Unit Axis: New 1605 Ball Screw
Driving units X axis:1202 Trapezoidal screw
Driving units Y axis:1202 Trapezoidal screw
Driving units Z axis:1202 Trapezoidal screw
Sliding units X axis:Dia.16mm chrome optical axis
Sliding units Yaxis:Dia.20mm chrome optical axis
Sliding units Z axis:Dia.12mm chrome optical axis
Stepping motor type 57 two-phase -3A
Spindle motor 800w dc motor
Spindle speed 0 ~ 24000rpm/min (PWM stepless speed regulation)
Repeat accuracy 0.05mm
Empty line speed 0-2000mm/min (16 subdivided driving down)
Spindle precision radial beat acuities 0.03 mm
Control unit triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions G code/TAB files/nc file/NCC files
Communication interface through parallel connection with computer
Software environment Windows 2000 / xp,win7-32 bit,win7-64 bit
Carving speed 0-1000mm/min (different materials differ)
Gross Weight: 59kg (130 lbs)

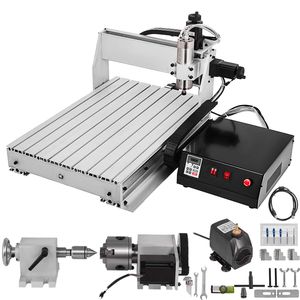

Package List:
1 x4 Axis CNC 6040 Engraving Milling Machine
1 x USB Cable
1 x USB
1 x A Set Of Installation Tools
1 x User Manual
VEVOR CNC Router 6040 4 Axis CNC Router Machine 600x400mm CNC Router Kit 1000W MACH3 Control Large 3D Engraving Machine CNC Router Kit with USB(6040 4 Axis with USB)
CNC Router 6040 4 Axis CNC Router Machine 600x400mm Cnc Router Kit 1000W MACH3 Control Large 3D Engraving Machine
Introduction:
This engraving milling machine is equipped with 4 rotating axis, which can realize plane engraving, and as its rotating original, the ball screws have the feature of high precision, low noise and high efficiency..
Technical Parameters:
Voltage: 110V
Engraving Area: 400x580x75mm(15.7"x22.8"x2.9")
Max.workpiece dimension 750mm X 480mm <100mm
Work table dimension 750mm X 480mm X 15mm
Frame Material: 6061 Aluminium Alloy + 6063 Industry Aluminium
Drive Unit Axis: New 1605 Ball Screw
Driving units X axis:1202 Trapezoidal screw
Driving units Y axis:1202 Trapezoidal screw
Driving units Z axis:1202 Trapezoidal screw
Sliding units X axis:Dia.16mm chrome optical axis
Sliding units Yaxis:Dia.20mm chrome optical axis
Sliding units Z axis:Dia.12mm chrome optical axis
Stepping motor type 57 two-phase -3A
Spindle motor 800w dc motor
Spindle speed 0 ~ 24000rpm/min (PWM stepless speed regulation)
Repeat accuracy 0.05mm
Empty line speed 0-2000mm/min (16 subdivided driving down)
Spindle precision radial beat acuities 0.03 mm
Control unit triaxial one-piece drive + ring variable power + PWM speed
Carving Instructions G code/TAB files/nc file/NCC files
Communication interface through parallel connection with computer
Software environment Windows 2000 / xp,win7-32 bit,win7-64 bit
Carving speed 0-1000mm/min (different materials differ)
Gross Weight: 59kg (130 lbs)

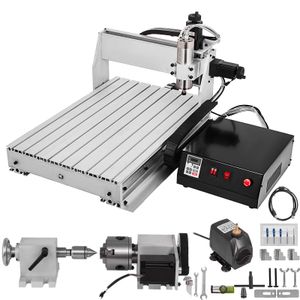

Package List:
1 x4 Axis CNC 6040 Engraving Milling Machine
1 x USB Cable
1 x USB
1 x A Set Of Installation Tools
1 x User Manual
