High Speed 2.2KW Water Cooled Spindle Motor Engraving Milling & Grinding
this is a high quality Spindle with stainless steel 304 casing and the Germany made ball bearing.New upgraded with adopt germany imported bearing: three times useful time than ordinary spindle motor. More speed: 8000-24000 R/min. More precis eollet: ER20(4mm,6mm,8mm,12mm,12.7mm) Runout off: less than 0.005mm.
Specification
Spec: 80x200 mm (Diameter: 80mm x Length: 200mm)
Power: 2.2 KW
Voltage: 220V~250V
Frequency: 400 Hz
Speed:8000-24000 R/min
System:Water Cooling
Runout off: less than 0.005 mm
Product Dimension:39 x 19 x 17 cm (L x W x H)
Gross Weight：5KG(11.02 lbs)
Feature:
Germany imported bearing can make spindle motor three times longer useful time than ordinary spindle motor.
MORE SPEED: 8000-24000 R/min.MORE PRECISE. Collet:ER20(4mm,6mm,8mm,12mm,12.7mm) Runout off: less than 0.005mm.
PackageContent:

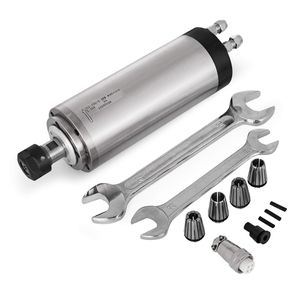

1*Brand New 2.2KW Water Coolde Spindle Motor
1 x English Manual
