Description

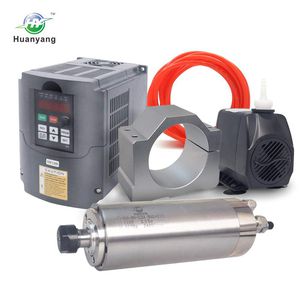

This package includes:
●1 x 110V-2.2KW VFD
●1 x 110V-2.2KW ER20 4bearings Water Cooled Spindle Motor(with a 6mm collet)
●1 x 110V-75W Water Pump
●1 x 80mm Motor clamp mount
●1 x 5m Water Pipe.
VFD specification:
modle:HY02D211B
power:2.2KW
horsepower:3HP
Input voltage:single-phase or three-phase 110V + -15% 50Hz / 60Hz
Output voltage:110V three-phase
Maximum output frequency:0 to 400hz
Input Frequency: 47-63Hz
the VFD can work with 110V single phase input and 110V three phase input.you can just connected L1/L2 to any two of VFD input R/S/T
spindle motor specification:
●Material: The cover is made of stainless steel, and the water jacket is high compression casting aluminum tube, red copper coil.
●Bearing: 7005 (2pcs)and 7002(2pc) bearings
● Voltage and rated current: AC 110V, 20A
● Max Rotation Speed:24,000 RPM
●Radial runout: 0.01mm
●Coaxality: 0.025mm (2.5 microns)
● Frequencies: 400Hz
●Size:80*213 (mm)
●Collet: ER20 collet, 6mm is standard
●Nut model: ER20-A(B)
●Cooling way: water cycling cooling way
●Lubrication way: high temperature resistance grease lubrication
●Power interface: GX16 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 inter-faces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire
●1 x 110V-2.2KW VFD
●1 x 110V-2.2KW ER20 4bearings Water Cooled Spindle Motor(with a 6mm collet)
●1 x 110V-75W Water Pump
●1 x 80mm Motor clamp mount
●1 x 5m Water Pipe.
VFD specification:
modle:HY02D211B
power:2.2KW
horsepower:3HP
Input voltage:single-phase or three-phase 110V + -15% 50Hz / 60Hz
Output voltage:110V three-phase
Maximum output frequency:0 to 400hz
Input Frequency: 47-63Hz
the VFD can work with 110V single phase input and 110V three phase input.you can just connected L1/L2 to any two of VFD input R/S/T
spindle motor specification:
●Material: The cover is made of stainless steel, and the water jacket is high compression casting aluminum tube, red copper coil.
●Bearing: 7005 (2pcs)and 7002(2pc) bearings
● Voltage and rated current: AC 110V, 20A
● Max Rotation Speed:24,000 RPM
●Radial runout: 0.01mm
●Coaxality: 0.025mm (2.5 microns)
● Frequencies: 400Hz
●Size:80*213 (mm)
●Collet: ER20 collet, 6mm is standard
●Nut model: ER20-A(B)
●Cooling way: water cycling cooling way
●Lubrication way: high temperature resistance grease lubrication
●Power interface: GX16 water proof aviation plug marked with number 1, 2, 3, 4. Number 1, 2 and 3 inter-faces are connected with inverter power U, V, W respectively. Number 4 is connected with earth wire
VFD CNC Spindle Motor Kits:110V 2.2KW VFD+110V 2.2KW 4 bearings Water Cooled Spindle Motor+110V 75W Water Pump+80mm Motor Clamp Mount+5m Water Pipe (110V-2.2KW VFD 2.2kw 4 bearings motor)
